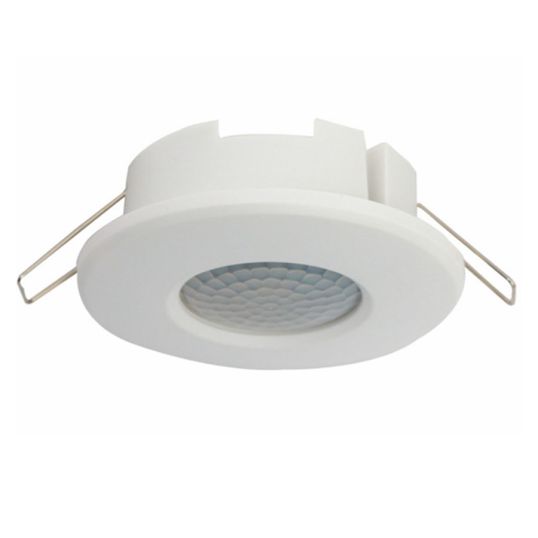

SAL Pixie Smart PIR Sensor Indoor Ceiling Mount 800W 360deg IP20 White

$SAL_Lighting\SAL_SMS861CD-BTAM.JPG$

Description

PIR Sensor, 240 Volt, LED: 400 Watt/Halogen: 800 Watt, 50 Hz, 8 mtr Sensing Range, 360 deg Sensing Beam, 2.2-4 mtr Mounting Height, IP20, Ceiling Mounting, White, -10 to 40 deg C, 93 mm Diameter x 28 mm Height

Key Specifications

Barcode (EAN-13)	9328623130968
SKU	SALSMS861CD/BTAM
Brand	SAL
Range Name	Pixie
Product Type	Sensors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Hold time and brightness threshold adjustment can be set via physical dials and in the App Maximum loads (LED) 400 Watt, (halogen) 800 Watt Designed for surface mount or recessed mount applications Detection angle 360 deg up to 8 mtr in diameter at a height of 4 mtr Simply use the App or PIXIE secondary device to switch among 3 working modes - motion sensor mode, override on and override off 3-wire design
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	SMS861CD/BTAM
Colour	White
Dimensions	93 mm Diameter x 28 mm Height
Frequency	50 Hz
IP Rating	IP20
Mounting Height	2.2-4 mtr
Mounting Method	Ceiling
Sensing Beam	360 deg
Sensing Range	8 mtr
Temperature	-10 to 40 deg C
Voltage	240 Volt
Wattage	LED: 400 Watt / Halogen: 800 Watt
