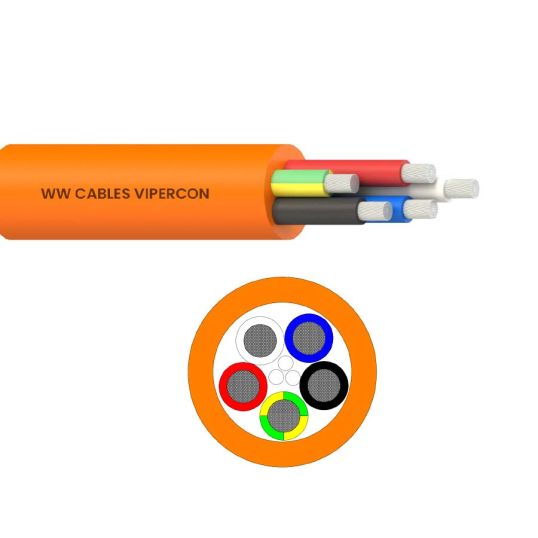

WWC Flexible Cable 4 Core + Earth 16mm 1kV Aluminium X-90 XLPE/5V-90 PVC Orange

chevron-left
loader
Loading...

Description

chevron-down
Flexible Cable, 16 mm, Flexible Aluminium, 0.6-1 kV, 4 Core + Earth, 22 mm Overall Diameter, 16 mm Earth Conductor, 330 mm During Installation/264 mm After Installation Bend Radius, 0.7 mm Insulation Thickness, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, -40 to 90 deg C, AS/NZS 5000.1 AS/NZS 3808 AS/NZS 1125 IEC 60332-1

Key Specifications

chevron-down
SKU
WWCAL4C16E16XV9
Brand
WWC
Product Type
Flexible Cable

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 500
UNSPSC Class 26121600
UOM MTR
Vendor Product AL4C16E16XV9
Bend Radius 330 mm During Installation - 264 mm After Installation
Conductor Size 16 mm
Conductor Type Flexible Aluminium
Earth Conductor Size 16 mm
Insulation Material X-90 XLPE
Insulation Thickness 0.7 mm
Number of Cores 4 Core + Earth
Overall Diameter 22 mm
Sheath Colour Orange
Sheath Material 5V-90 PVC
Standards AS/NZS 5000.1 AS/NZS 3808 AS/NZS 1125 IEC 60332-1
Temperature -40 to 90 deg C
Voltage 0.6-1 kV
