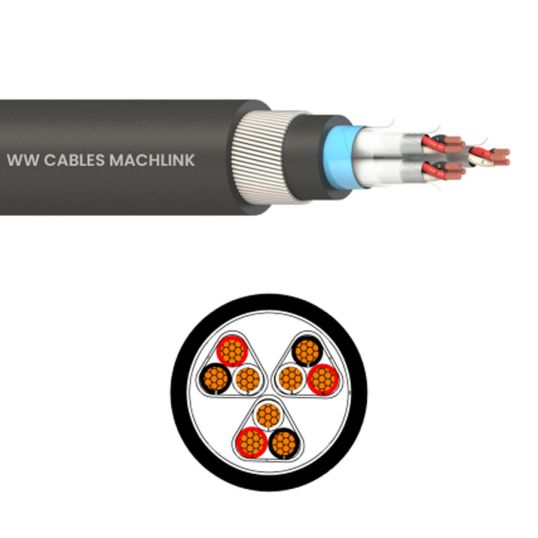

WWC Instrument Armoured Cable 3 Triad 1.5sq-mm Individual and Overall Screened V-90 PVC 5V-90 PVC Black 110VAC/150VDC

$WWC\WWC_53xxN.jpg$

Description

Instrument Armoured Cable, 1.5 sq-mm Conductor, Annealed Copper Conductor, 110 Volt AC/150 Volt DC, 3 Triad, 7/0.3 mm Stranding, Individual and Overall Screened Screen, 18.1 mm Overall Diameter, 342 mm During Installation/228 mm After Installation Bend Radius, 0.4 mm Insulation Thickness

Key Specifications

SKU	WWC5335N
Brand	WWC
Product Type	Instrument Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5335N
Armour Material	Galvanised Steel Wire
Bend Radius	342 mm During Installation/228 mm After Installation
Conductor Resistance	13.6 Ohm/km
Conductor Type	Annealed Copper
Core Colours	Black/White/Red
Insulation Material	V-90 PVC
Number of Pairs	3 Triad
Insulation Thickness	0.4 mm
Overall Diameter	18.1 mm
Please Note	Inner Oversheath
Screen Format	Individual & Overall Screened
Sheath Colour	Black
Sheath Material	5V-90 PVC
Standards	AS / NZS 1125 AS / NZS 3808 AS / NZS 1660.5.6 AS / NZS 1660.5.1 UL 2464
Stranding	7/0.3 mm
Voltage	110 Volt AC/150 Volt DC
Temperature	-25 to 75 deg C
