Tonglin Solar Cable Twin DC 2C 6mm 84/0.285mm XLPE XLPE Black 500m 1500V 3.02mm 5 x d 0.7mm 0.8mm >=150% 10.3Mpa

Name: Solar Cable Twin DC 2C 6mm 84/0.285mm XLPE XLPE Black 500m
SKU: TON6TDC-5
Availability: InStock

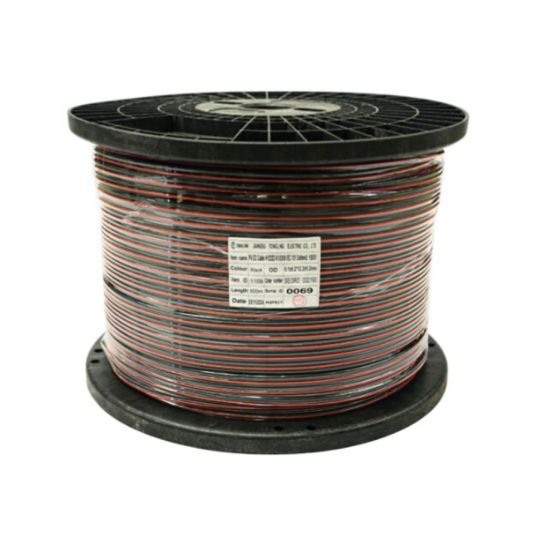

$Tonglin\Tonglin_TON6TDC-5.JPG$

Description

Solar Cable Twin DC, 1500 Volt, 6 mm Conductor, 2 Core, 84/0.285 mm Stranding, 3.02 mm Overall Diameter, 500 mtr Length, 5 x d Bend Radius, 0.7 mm Insulation Thickness, 0.8 mm Sheath Thickness, >=150% Elongation, >=10.3 Mpa Tensile Strength, 3.39 Ohm/km Conductor, Tinned Copper Conductor

Key Specifications

SKU	TON6TDC-5
Brand	Tonglin
Range Name	DC Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TON6TDC-5
Bend Radius	5 x d
Conductor Resistance	3.39 Ohm/km
Conductor Material	Tinned Copper
Conductor Size	6 mm
Elongation	>=150%
Insulation Colour	Black / Red
Insulation Material	XLPE
Insulation Resistance	580 MOhm/km at 20 deg C/0.58 MOhm/km at 90 deg C
Insulation Thickness	0.7 mm
Number of Cores	2 Core
Overall Diameter	3.02 mm
Sheath Material	XLPE
Sheath Thickness	0.8 mm
Temperature	-40 to 90 deg C
Stranding	84/0.285 mm
Standards	IEC 62930
Sheath Colour	Black
Tensile Strength	>=10.3 Mpa
Voltage	1500 Volt
