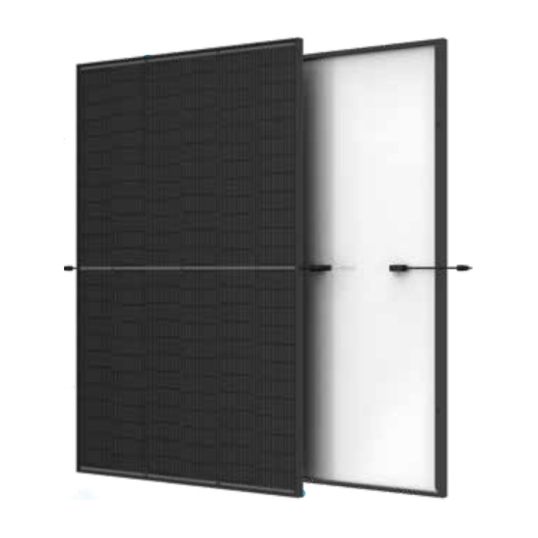

Trina Solar Panel 440W TOPCon Monocrystalline 144 Cells 44V 10.01A 30mm Anodized Aluminum Alloy Black N-Type 52.2V 25A

$Trina\Trina_TSM-440NEG9R.25.JPG$

Description

Solar Panel, N Type Model, TOPCon Monocrystalline Cell, 144, 440 Watt, 44 Volt Maximum, 10.01 Amp Maximum, 52.2 Volt Open Circuit, 10.67 Amp Short Circuit, 25 Amp Max. Fuse, 1500 Volt DC Max. System, 22% Efficiency, 0-5 Watt Power Tolerance, TS4, MC4 EVO2 Connector, IP68 Junction Box, 1762 mm Length

Key Specifications

SKU	TNATSM-440NEG9R.25
Brand	TRINA
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Outstanding Visual Appearance- Designed with aesthetics in mind. Inheriting Trina Solar awards-winning full black design Dual-glass Design, High Reliability- Up to 25 years product warranty and 30 years power warranty.Excellent fire rating and resistance to harsh environmental conditions. 5400 Pa snow load and 4000 Pa wind load (test loads) Small in size, bigger on power- Up to 450 Watt, 22.5 % module effciency with high density interconnect technology. Reduces installation cost with higher power bin and effciency. Boost performance in warm weather with low temperature coeffcient and operating temperature Universal solution for residential and C&I rooftops-Designed for compatibility with existing mainstream inverters, optimizers and mounting systems. Perfect size and low weight for easy handling. Optimized transportation cost. Flexible installation solutions for system deployment
Standard Pack Size	36
UNSPSC Class	26111600
UOM	EA
Vendor Product	TSM-440NEG9R.25
Certifications	CE / TUV
Connector Type	TS4 / MC4 EVO2
Efficiency	22%
Frame Construction	30 mm Anodized Aluminium Alloy Black
Front Glass	1.6 mm, High Transmission, AR Coated Heat Strengthened Glass
Height	30 mm
Junction Box	IP68
Item Weight	21 kg
Max. Fuse Current	25 Amp
Max. System Voltage	1500 Volt DC
Operating Temperature	-40 to 85 deg C
Number Of Cells	144
Output Cables	Photovoltaic Technology Cable 4 sq-mm / Landscape: 1100/1100 mm / Portrait: 280/350 mm
Model	N Type
Power Tolerance	0-5 Watt
Please Note	Technology: TOPCon, Color: Black
Short Circuit Current	10.67 Amp
Temperature Coefficient	-0.29%/ deg C
Warranty	25 Years Workmanship / 30 Years Power
Width	1134 mm
Wattage	440 Watt
