Schneider Reversing Switch Kit For Contactors LC1DT20-DT40 4P
Loading...
Description

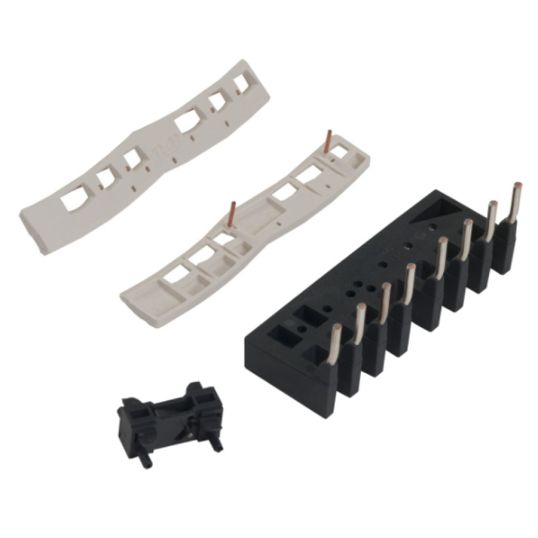

TeSys D kit for changeover contactors assembly, for 4-pole contactors LC1DT20-DT40. It contains a mechanical interlock LAD9V2 with an electrical interlocking LAD9V1, a set of 4 parallel bars LAD9V7. For assembling 2 identical contactors horizontally mounted, with screw clamp Everlink terminals. Green Premium compliant (RoHS/REACh).
Key Specifications
| Barcode (EAN-13) |
3389110272222
|
|---|---|
| SKU |
TEELADT9R1V
|
| Brand |
Schneider
|
| Range Name |
TeSys Model D
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | LADT9R1V |
| For Use With | 4 Pole Contactors LC1DT20-DT40 |
| Mounting Method | Horizontally |
| Number Of Poles | 4 Pole |
| Product Type | simple |
| Terminal Connection | Screw Clamp |
