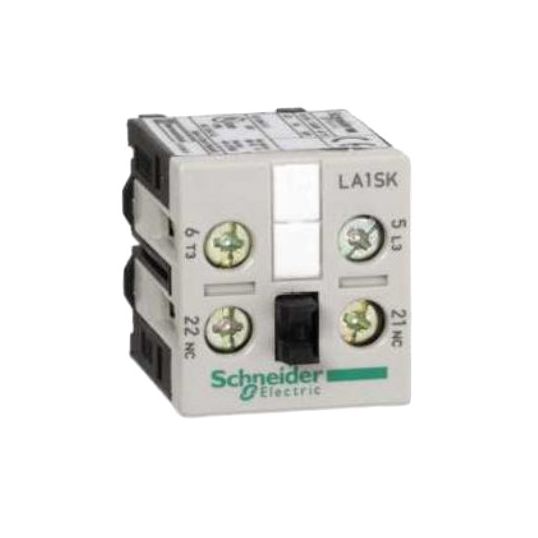

Schneider Auxiliary Contact Block Front Mount 690V 1NO-1NC IP2X Screw Clamp
Loading...
Description
Auxiliary Contact Block Front Mount, 690 Volt AC, 1NO+1NC, Front Mount, Screw/Clamp Terminal, IP2X, -20 to 50 deg C, 27 mm Width, For Use With: LC1SK Mini-Contactors
Key Specifications
| Barcode (EAN-13) |
3389110564006
|
|---|---|
| SKU |
TEELA1-SK11
|
| Brand |
Schneider
|
| Range Name |
TeSys Model SK
|
| Product Type |
Contactor Auxiliaries
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LA1SK11 |
| Contact Configuration | 1 Normally Opened & 1 Normally Closed |
| IP Rating | IP2X |
| For Use With | LC1SK Mini-Contactors |
| Mounting Method | Front |
| Operational Voltage | 690 Volt AC |
| Temperature | -20 to 50 deg C |
| Width | 27 mm |
| Terminal Connection | Screw Clamp |
