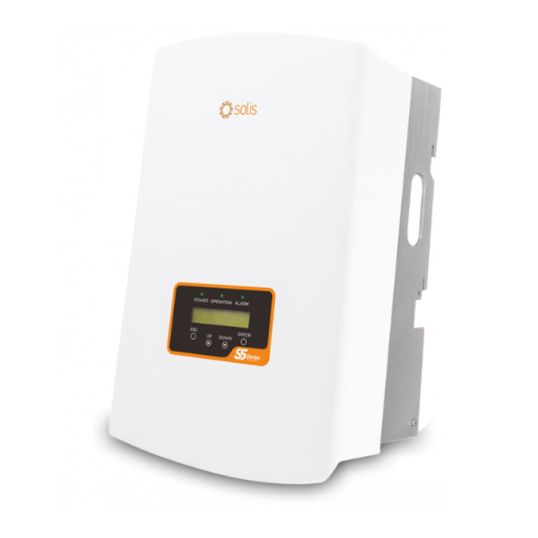

Solis PV Grid Tie Inverter 3 Phase 2MPPT 5kW Built-in DC

$Solis\Solis_S5-GR3P5K-AU.jpg$

Description

Inverter, 3 Phase, 6.7 kW DC Input, 1100 Volt DC Input, 600 Volt DC Nominal, 160-1000 Volt DC MPPT Voltage Range, 180 Volt DC Start-up, 32/16 Amp DC Max. Input, 2 MPPTs, 5 kW AC Output, 5 kVA AC Max. Apparent, 230/400 Volt, 50 Hz, 7.9 Amp AC Output, >0.99 (0.8 Leading-0.8 Lagging) Power Factor, <2% Total Harmonic Distortion, 98.3% Efficiency, 97.7% European Weighted Efficiency, Transformerless, 2000 mtr Max. Altitude, PV2 Switch DC Switch, RS485, LCD Display, Intelligent Redundant Fan-Cooling Cooling, MC4 Connector, Quick Connection Plug Connection, IP66,-25 to 60 deg C, 0 to 100% Relative Humidity, 563mm Height, 310mm Width, 219mm Depth, 17.8 kg, IEC 62109-1/-2, IEC 61000-6-1/-2/-3/-4, AS/NZS 4777.2:2020, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530

Key Specifications

SKU	SOLS5-GR3P5K-AU
Brand	Solis
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Max Efficiency 98.7% Wide Voltage Range & Low Startup Voltage Automatic Voltage Stabilization technology in weak grid condition Compact Design with easy maintenance and installation String Current up to 16A 130% DC/AC Ration IP66, AFCI Protection - Proactively reduces fire risk Support Export Power Control, RS485m Wi-Fi, GPRS Scan to register on SolisCloud, support remote upgrade and control >130% DC/AC ratio
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	S5-GR3P5K-AU
AC Max. Apparent Power	5 kVA
AC Nominal Voltage	230-400 Volt
AC Operating Frequency	50 Hz
AC Output Power	5 kW
AC Output Current	7.9 Amp
Communication Port	RS485
Connection Type	MC4 Connector/Quick Connection Plug
Cooling Method	Intelligent Redundant Fan-Cooling
DC Input Power	6.7 kW
DC Max. Input Current	32-16 Amp
DC Input Voltage	1100 Volt
DC MPPT Voltage Range	160-1000 Volt
DC Nominal Voltage	600 Volt
DC Start-up Voltage	180 Volt
DC Switch	PV2 Switch
Depth	219 mm
Display Type	LCD
Efficiency	98.30%
Height	563 mm
IP Rating	IP66
European Weighted Efficiency	97.70%
Max. Operating Altitude	2000 mtr
Number of MPPTs	2
Operating Temperature	-25 to 60 deg C
Phase	3 Phase
Power Factor	>0.99 (0.8 Leading-0.8 Lagging)
Relative Humidity	0 to 100%
Topology	Transformerless
Total Harmonic Distortion	<2%
Width	310 mm
