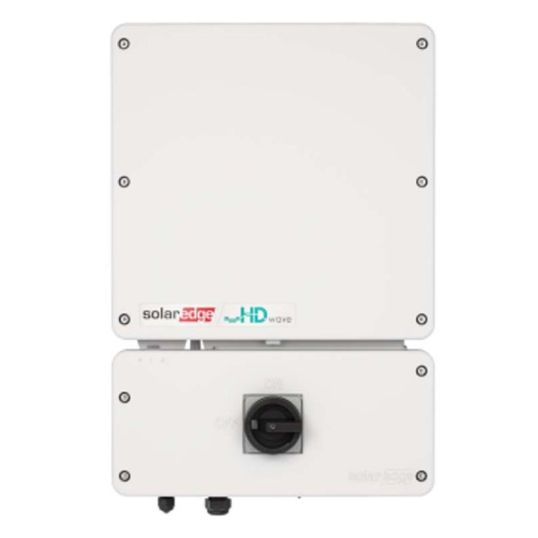

SolarEdge Home Genesis Inverter 8.25kW Single Phase SolarEdge Home Network Ready

$Solar_Edge\SolarEdge_SE8250H-AUL00BEU4.jpg$

Description

Solar Inverter, 1 Phase Phase, 11135 Watt DC Input, 450 Volt DC Input, 375-450 Volt DC Operating Voltage, 450 Volt DC Nominal, 23 Amp DC Max. Input, 8.25 kW AC Output, 8250 VA AC Max. Apparent, 184-264.7 Volt, 400-230 Volt 3/N/PE, 50 Hz +/-5, 14 Amp AC Output, 1 (Adjustable 0.8 Leading-0.8 Lagging) Power Factor, 0.971 European Weighted Efficiency, Non-Isolated, 2x RS485/Ethernet/Wi-Fi/ZigBee for Smart Energy(Optional), Fan Cooling, <50 dBA, Bracket Mounting, IP65, -40 to 60 deg C

Key Specifications

SKU	SLRSE8250H-AUL00BEU4
Brand	SolarEdge
Range Name	Genesis
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Single string design for inverters up to 5 kW AC Faster, simpler installation with maximum design flexibility Record breaking inverter efficiency for more energy production Specially designed to work with SolarEdge power optimiser for higher energy yield Battery ready solution supporting On-Grid storage IP65 rated suitable for outdoor & indoor installation Rapid inverter commissioning via Smartphone using SetApp Advanced safety features including SafeDC and integrated arc fault protection Compact, lightweight and easy to install Supports Wi-Fi communication(Sold separately)
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SE8250H-AUL00BEU4
AC Max. Apparent Power	8250 VA
AC Nominal Voltage	400-230 Volt 3/N/PE
AC Operating Frequency	50 Hz +/-5
AC Operating Voltage	184-264.7 Volt
AC Output Power	8.25 kW
AC Output Current	14 Amp
Communication Port	2x RS485/Ethernet/Wi-Fi/ZigBee for Smart Energy(Optional)
Cooling Method	Fan
DC Input Power	11135 Watt
DC Max. Input Current	23 Amp
DC Input Voltage	450 Volt
DC Nominal Voltage	450 Volt
DC Operating Voltage	375-450 Volt
Depth	260 mm
Height	775 mm
IP Rating	IP65
European Weighted Efficiency	0.971
Mounting Method	Bracket
Noise Level	<50 dBA
Operating Temperature	-40 to 60 deg C
Phase	1 Phase
Power Factor	1 (Adjustable 0.8 Leading-0.8 Lagging)
Topology	Non-isolated
Width	315 mm
