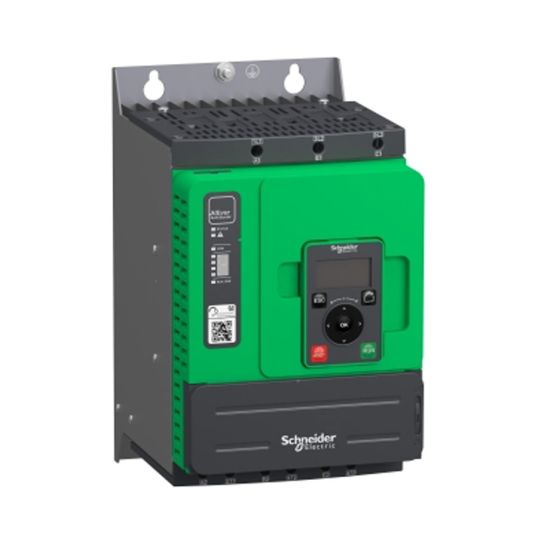

Schneider Soft Starter 3 Phase 18.5kW 208-690V 32A

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208 Volt to 690 Volt It meets the requirements of the most demanding applications in normal and heavy duty With an operational rated current of 32A in normal duty, it supplies motor from 7.5 kW to 22 kW according to mains voltage Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications Its torque control (TCS) masters acceleration and deceleration It efficiently stops high inertia application thanks to the dynamic braking and DC injection It could be connected in-line or inside the delta to reduce its operational current The embedded test routine simplifies the commissioning inside the delta Its dimensions are 160 mm (width) x 203 mm (depth) x 275 mm (height) and it weighs 4.9 kg Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines It conforms to IEC/EN60947-4-1 It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS Display terminals, remote mounting kit, communication modules are common with Altivar Drives Line chokes, DNV kits are common with ATS48 ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems It is a product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.
