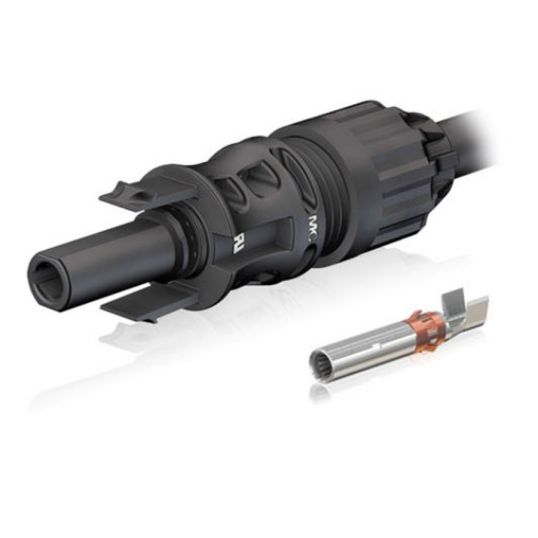

Staubli MC4-EVO 2 Female Socket Cable Coupler F/4.7-6.4mm OD

$Staubli\Staubli_32.0086P0001.jpg$

Description

Cable Coupler, 600-1000-1500 Volt DC, 45-53 Amp, 4-6 sq-mm, 4.7-6.4 mm, 4 mm, IP65/68, Copper/Tin Plated/Polyamide Insulation, -40 to 85 deg C

SKU	MCS32.0086P0001
Brand	Staubli

Looking for something specific? Search with keywords to help filter your required specifications.

Features	The MC4-EVO2 is fully intermateable with the MC4 connector family Guaranteed intermateability with the MC4 connector family by Multi-Contact and certified by TUV as well as recognized by UL International certifications for 1500 Volt IEC, 1000 Volt UL recognized and JET
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	32.0086P0001
Cable Range	4.7-6.4 mm
Conductor Size	4-6 sq-mm
Current	45-53 Amp
Connector System	4 mm
IP Rating	IP65/68
Material	Copper/Tin Plated/Polyamide Insulation
Product Type	simple
Voltage	600-1000-1500 Volt DC
Temperature	-40 to 85 deg C
