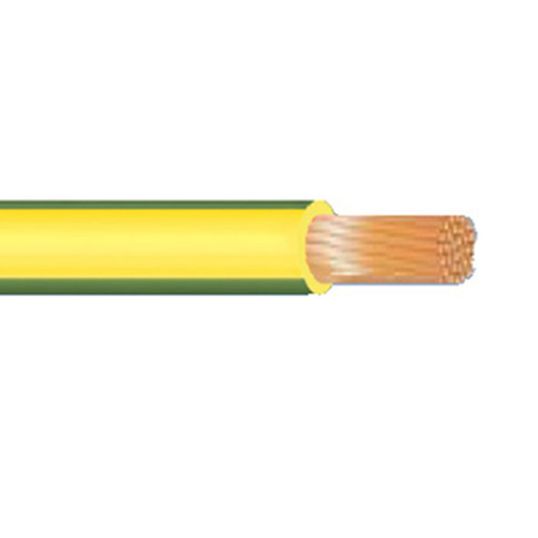

MEC Cables 120mm Building Wire Black/Blue/Red/White/Green/Yellow 100mtr
Loading...
Description
Building Wire, 120 mm, Class 5 Annealed Copper, 0.6-1 kV, 1583/0.3 mm Strands, 18.3 mm Overall Diameter, 100 mtr Length, 110 mm Bend Radius, 1.6 mm Insulation Thickness, DC: 0.161 Ohm/km Conductor Resistance, X-HF-110 Insulation, Red/White/Blue/Black/Green/Yellow Insulation, 90 deg C, AS/NZS 5000.1
Key Specifications
| SKU |
MCBER1C1200
|
|---|---|
| Brand |
MEC Cables
|
| Product Type |
Building Wire
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121614 |
| UOM | MTR |
| Vendor Product | ER1C1200 |
| Voltage | 0.6-1 kV |
| Conductor Size | 120 mm |
| Conductor Type | Class 5 Annealed Copper |
| Overall Diameter | 18.3 mm |
| Temperature | 90 deg C |
| Bend Radius | 110 mm |
| Conductor Resistance | DC: 0.161 Ohm/km |
| Insulation Colour | Black/Blue/Red/White/Green/Yellow |
| Insulation Material | X-HF-110 |
| Insulation Thickness | 1.6 mm |
| Standards | AS/NZS 5000.1 |
| Stranding | 1583/0.3 mm |
