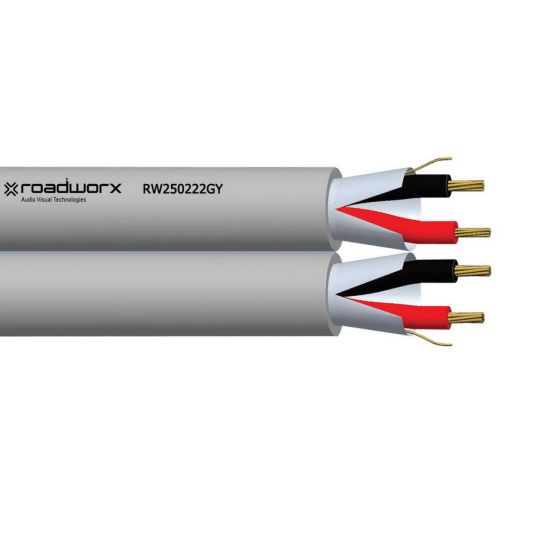

Madison Roadworx Data & Control Cable 22AWG 7/0.25mm PVC/AL/PVC Grey 100M

Description

Figure 8 Data & Control Cable, 22 AWG, Tinned Copper, Bend Radius: Install: 36.5mm, Elongation: Insulation: >100%; Sheath: >100%, 2 Pair, Pulling Tension: 96 N, Tensile Strength: Insulation: >=13.6 N/mm, Sheath: >=12 N/mm, Stranding: 7/0.25 +/-0.006mm, Insulation Thickness: >=0.25mm, Sheath Thickness: >=0.51mm, Conductor Resistance: DC: 55 Ohm/km at 20 deg C, PVC Insulation, PVC Sheath, Aluminium Foil 100% Coverage Screen, Red, Black Insulation, Grey Sheath, 3.65 +/-0.2mm x 7.3 +/-0.2mm Overall Diameter, 100 mtr Length,-15 to 70 deg C

Key Specifications

SKU	MADRW250222GY100
Brand	Madison
Range Name	Roadworx
Product Type	Data & Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	43221700
UOM	MTR
Vendor Product	RW250222GY100
Bend Radius	Install: 36.5mm
Conductor Resistance	DC: 55 Ohm/km at 20 deg C
Conductor Size	22 AWG
Conductor Type	Tinned Annealed Copper
Elongation	Insulation: >100%; Sheath: >100%
Insulation Material	PVC
Insulation Colour	Black/Red
Insulation Thickness	>=0.25mm
Overall Diameter	3.65 +/-0.2 x 7.3 +/-0.2mm
Pair Count	2
Pulling Tension	96 N
Screen Material	Aluminium Foil
Sheath Colour	Grey
Sheath Material	PVC
Sheath Thickness	>=0.51mm
Stranding	7/0.25 +/-0.006mm
Temperature	-15 to 70 deg C
Tensile Strength	Insulation: >=13.6 N/sq-mm/Sheath: >=12 N/sq-mm
