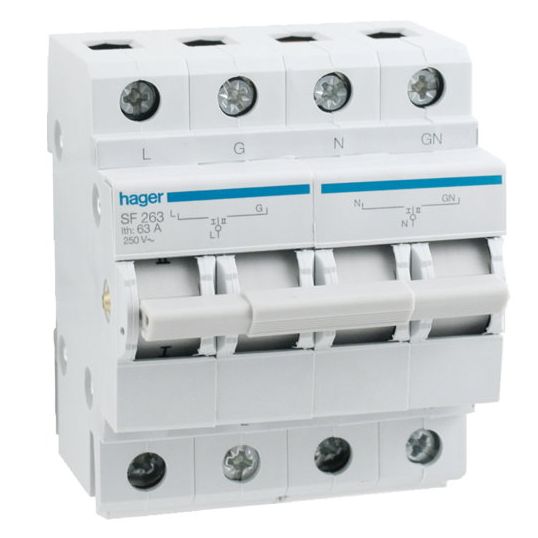

Hager Changeover Switch 2P 63A AC21 DIN Rail Mount IP20

Description

Changeover Switch DIN Mount, 230 Volt, 63 Amp AC21 at 240 Volt AC21, 3.6 Watt, 50/60 Hz, 2 Pole, Manual Actuator, 16 sq-mm Flexible/25 sq-mm Rigid, DIN Rail Mounting, Screw Connection, IP20, -25 to 50 deg C, 90 mm Height, 71.5 mm Width, 72 mm Depth

Key Specifications

Barcode (EAN-13)	3250615561008
SKU	HAGSF263
Brand	Hager
Product Type	Changeover Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	SF263
AC21 Rating	63 Amp AC21 at 240 Volt
Actuator	Manual
Conductor Size	16 sq-mm Flexible - 25 sq-mm Rigid
Connection Type	Screw
Depth	72 mm
Frequency	50/60 Hz
Height	90 mm
IP Rating	IP20
Mounting Method	DIN Rail
Number Of Poles	2 Pole
Power Rating	3.6 Watt
Temperature	-25 to 50 deg C
Voltage	230 Volt
Width	71.5 mm
