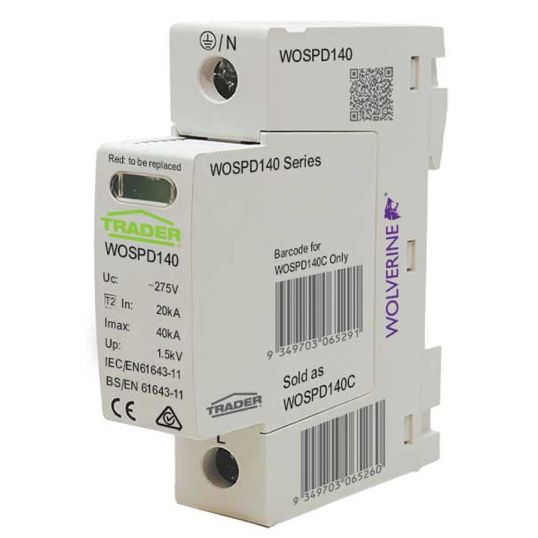

GSME Trader Surge Protection Device 275V 1P 40kA DIN Rail

$GSME\GSME_WOSPD140.JPG$

Description

Surge Protection Device, 275 Volt, 40 kA, 1 Pole, DIN Rail Mounting, 35 mm Mounting Centres, Polymer, -40 to 80 deg C, 82.3 mm Height, 18 mm Width, 66.9 mm Depth

Key Specifications

Barcode (EAN-13)	9349703065260
SKU	GSMWOSPD140
Brand	GSME Trader
Range Name	Wolverine

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Ratings and technical specifications in accordance with standards IEC/EN 1643-11,BS/EN 61643-11 For use in switch boards where MEN configurations are present Normal discharge current (8/20?s) In 20kA Maximum discharge current (8/20?s) Imax 40kA Voltage protection level Up ?1.5kV Max.backup fuse/MCB 32A gL/32A
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	WOSPD140
Mounting Centres	35 mm
Depth	66.9 mm
Height	82.3 mm
Material	Polymer
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Temperature	-40 to 80 deg C
Width	18 mm
