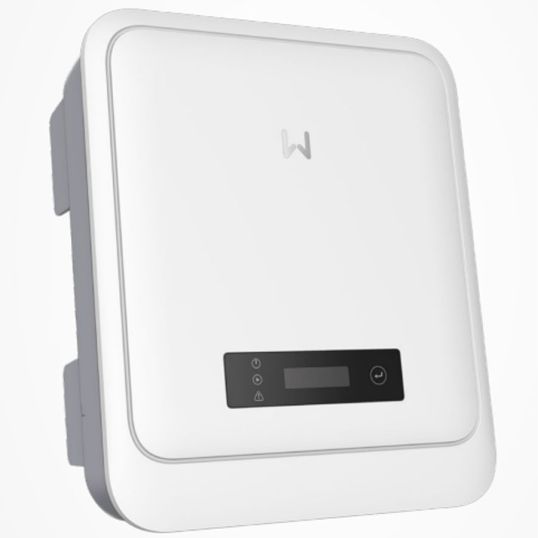

Goodwe DNS Series Solar Inverter 6000W 2 MPPT 1 Phase 600V RS485/WIFI/LAN

Description

Solar Inverter, 1 Phase Phase, 7200 Watt DC Input, 600 Volt DC Input, 360 Volt DC Nominal, 80-550 Volt DC MPPT Voltage Range, 80 Volt DC Start-up, 11 Amp DC Max. Input, 2 MPPTs, 6000 Watt AC Output, 6000 VA AC Max. Apparent, 220-230 Volt, 50/60 Hz, 27.3 Amp AC Output, 1 (Adjustable 0.8 Leading-0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 0.978 Efficiency, 0.975 European Weighted Efficiency, Non-Isolated, 4000 mtr Max. Altitude, Optional DC Switch, Wi-Fi/RS485 or 4G or 2G or LAN, Natural Convection Cooling, <25 dB, DC: MC4/AC: Plug and Play Connection, IP65, -25 to 60 deg C

Key Specifications

SKU	GDWGW6000-DNS-30
Brand	Goodwe
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	80 Volt start-up voltage Fanless and noiseless Export control Small, light weight and easy to install Flexible communication methods
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW6000-DNS-30
AC Max. Apparent Power	6000 VA
AC Nominal Voltage	220-230 Volt
AC Operating Frequency	50/60 Hz
AC Output Current	27.3 Amp
AC Output Power	6000 Watt
Communication Port	Wi-Fi/RS485 or 4G or 2G or LAN
Connection Type	DC: MC4/AC: Plug and Play
Cooling Method	Natural Convection
DC Input Power	7200 Watt
DC Input Voltage	600 Volt
DC Max. Input Current	11 Amp
DC MPPT Voltage Range	80-550 Volt
DC Nominal Voltage	360 Volt
DC Start-up Voltage	80 Volt
DC Switch	Optional
Depth	147 mm
Efficiency	0.978
European Weighted Efficiency	0.975
IP Rating	IP65
Height	433 mm
Max. Operating Altitude	4000 mtr
Noise Level	<25 dB
Number of MPPTs	2
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Power Factor	1 (Adjustable 0.8 Leading-0.8 Lagging)
Relative Humidity	0-100%
Topology	Non-Isolated
Total Harmonic Distortion	<3%
Width	354 mm
