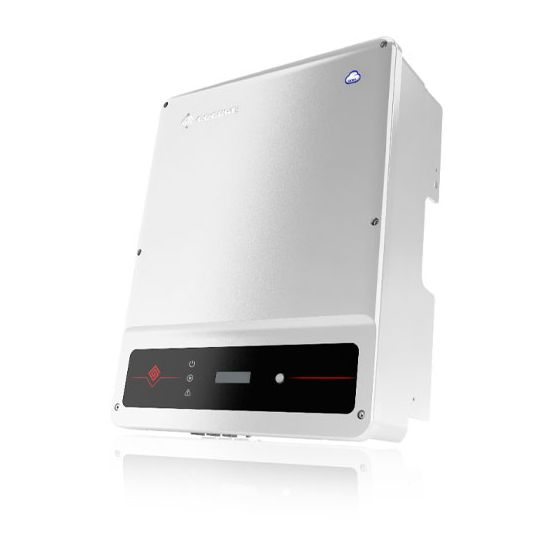

Goodwe MS Series Solar Inverter 3 MPPT Single Phase 5kW RS485/WIFI//LAN

$Goodwe\Goodwe_GW5000-MS_GW6000-MS_GW8500-MS_GW10000-MS.jpg$

Description

Solar Inverter Triple MPPT, 1 Phase, 10000 Watt Input, 600 Volt DC Input, 360 Volt DC Nominal, 80-550 Volt DC MPPT Voltage Range, 80 Volt DC Start-up, 12.5 Amp Max. Input, 3 MPPTs, 5 kW Output, 5500 VA Max. Apparent, 220/230 Volt AC Nominal, 50/60 Hz, 25 Amp Output, 1, Adjustable From 0.8 Leading to 0.8 Lagging Power Factor, < 3% Harmonic Distortion, 97.7% Efficiency, Transformerless, <= 4000 mtr Max. Altitude, RS485/Wi-Fi/LAN, LCD & LED Display, Natural Convection Cooling, IP65, -25 to 60 deg C, 0-100% Relative Humidity, 511 mm Width x 415 mm Height x 175 mm Depth, 22.5 kg Weight

Key Specifications

SKU	GDWGW5000-MS
Brand	Goodwe
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Low start up voltage, high generation yield
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW5000-MS
AC Operating Frequency	50/60 Hz
AC Nominal Voltage	220-230 Volt
AC Max. Apparent Power	5500 VA
AC Output Current	25 Amp
AC Output Power	5 kW
Communication Port	RS485/Wi-Fi/LAN
DC Input Power	10000 Watt
DC Input Voltage	600 Volt
DC Max. Input Current	12.5 Amp
Cooling Method	Convection
DC MPPT Voltage Range	80-550 Volt
DC Nominal Voltage	360 Volt
DC Start-up Voltage	80 Volt
Display Type	LCD & LED
Depth	175 mm
European Weighted Efficiency	97.30%
IP Rating	IP65
Height	415 mm
Efficiency	97.70%
Item Weight	22.5 kg
Number of MPPTs	3
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Power Factor	1/Adjustable from 0.8 Leading to 0.8 Lagging
Relative Humidity	0-100%
Topology	Transformerless
Width	511 mm
