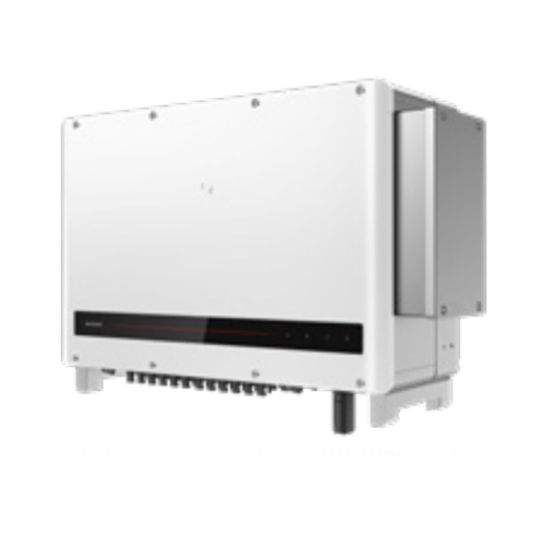

Goodwe HT Series Commercial Rooftop Inverter 99.99 kW 10 MPPT 3 PH 400 Volt 3L /N/PE or 3L/PE1 167 Amp IP66

$Goodwe\Goodwe_GWXXXK-HT.jpg$

Description

Commercial Rooftop Inverter/3 Phase/150 kW DC Input/1100 Volt DC Input/180-1000 Volt DC MPPT Voltage Range/200 Volt DC Start-up/30 Amp DC Max. Input/10 MPPTs/99.99 kW AC Output/99.99 kVA AC Max. Apparent/400 Volt/3L /N/PE or 3L/PE1/50/60 Hz/167 Amp AC Output/-1 Power Factor/<3% Total Harmonic Distortion/98.6% Efficiency/98.3% European Weighted Efficiency/Non-Isolated/5000 mtr Max. Altitude/Integrated DC Switch/RS485/WiFi or 4G/Smart Fan Cooling Cooling/IP66/-30 to 60 deg C/0-100% Relative Humidity/678mm Height/1008mm Width/343mm Depth/93.5 kg

Key Specifications

SKU	GDWGW100K-HT
Brand	Goodwe
Product Type	Solar Inverter Rooftop

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW100K-HT
AC Max. Apparent Power	99.99 kVA
AC Operating Frequency	50/60 Hz
AC Nominal Voltage	400 Volt
AC Output Current	167 Amp
AC Output Power	99.99 kW
Communication Port	RS485/WiFi/4G
Cooling Method	Smart Fan Cooling
DC Input Power	150 kW
DC Max. Input Current	30 Amp
DC MPPT Voltage Range	180-1000 Volt
DC Input Voltage	1100 Volt
DC Start-up Voltage	200 Volt
Depth	343 mm
DC Switch	Integrated
Efficiency	98.60%
European Weighted Efficiency	98.30%
IP Rating	IP66
Height	678 mm
Max. Operating Altitude	5000 mtr
Number of MPPTs	10
Operating Temperature	-30 to 60 deg C
Power Factor	-1
Phase	3 Phase
Relative Humidity	0-100%
Topology	Non-Isolated
Total Harmonic Distortion	<3%
Width	1008 mm
