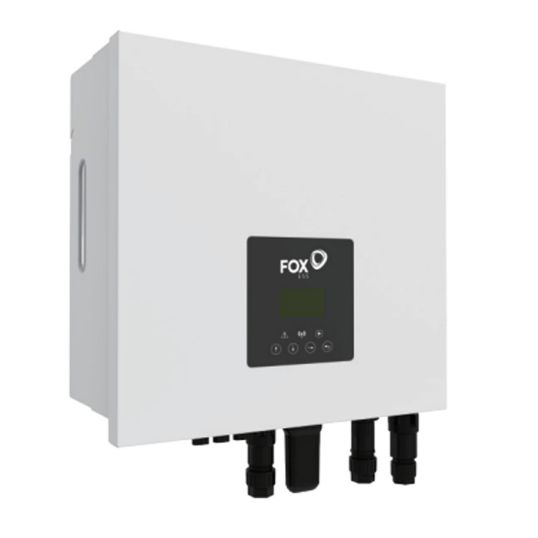

Fox ESS Single Phase Hybrid inverter 5KW

$Fox-ESS\Fox-ESS_H_Series.JPG$

Description

Harness the power of the sun day and night with the ground-breaking range of Hybrid and AC inverters from Fox ESS. Full of advanced features and compatible with our very own range of high-voltage batteries, the hybrid range from Fox ESS. It is a new class of Inverter.

Key Specifications

SKU	FSSFOX-H1-5--AU
Brand	Fox ESS
Range Name	H Series
Product Type	Hybrid Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Easy Installation - Flexible configuration plug and play set-up, built-in fuse protection High Voltage - Includes high-voltage batteries for maximum round-trip effciency IP65 Rated - Engineered to last with maximum flexibility. Suitable for outdoor installation Remote Monitoring - Monitor your system remotely via smartphone app or web portal
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	FOX-H1-5--AU
AC Max. Apparent Power	5500 VA
AC Nominal Voltage	220 / 230 / 240 Volt
AC Operating Frequency	50/60 Hz
AC Output Current	22.7 Amp
AC Output Power	5 kW
Battery	80-480 Volt Lithium
Communication Port	RS485 / DRM / Ripple Control / USB / CAN
Cooling Method	Natural
DC Input Power	7500 Watt
DC Input Voltage	600 Volt
DC MPPT Voltage Range	80-550 Volt
DC Max. Input Current	16 Amp
DC Nominal Voltage	360 Volt
DC Start-up Voltage	75 Volt
DC Switch	Yes
Depth	185 mm
Display Type	LCD / App / Website
Efficiency	97.80%
IP Rating	IP65
Height	418 mm
European Weighted Efficiency	96.30%
Max. Operating Altitude	2000 mtr
Noise Level	35 dB
Mounting Method	Wall
Number of MPPTs	2
Phase	1 Phase
Operating Temperature	-25 to 60 deg C
Power Factor	1 (Adjustable from 0.8 Leading-0.8 Lagging)
Relative Humidity	0-100% No Condensation
Topology	Non-isolated
Total Harmonic Distortion	<3%
Width	434 mm
