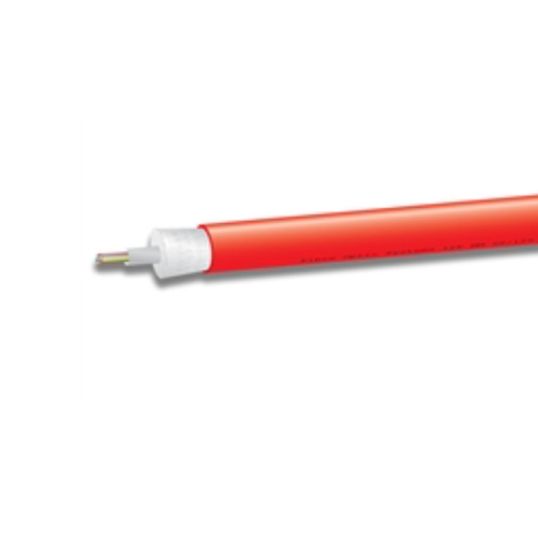

FOS Fire Rated Fibre Optic Cable 180min Singlemode 12 Fibre LSZH Red

$FOS\FOS_F-FRXXXX-LSZH-RD-180.jpg$

Description

Fibre Optic Cable Fire Rated, <0.4 dB/km at 1300/1310 nm, <0.3 dB/km at 1550 nm Attenuation, Operation: 7.5mm, Installation: 11.25mm Bend Radius, Singlemode, 12 Fibre, 2000 N Tensile Strength, LSZH Sheath, Red Sheath,-30 to 70 deg C, 7.5mm Outside Diameter

Key Specifications

SKU	FOSF-FR12S-LSZHRD180
Brand	FOS
Product Type	Fibre Optical Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fire resistant cable offers protection in hazardous or fire prone areas for critical systems Non-metallic, all dielectric construction allows for cable installation in areas such as power substations with restrictions in place for metallic cable High performance components and construction Complies with relevant IEC codes, standards & specifications for fire resistant & flame retardant properties Glass yarn offers a level of protection against non-burrowing rodents Cable materials are indoor/outdoor - UV, water and rodent resistant
Standard Pack Size	2000
UNSPSC Class	26121600
UOM	MTR
Vendor Product	F-FR12S-LSZH-RD-180
Attenuation	<0.4 dB/km at 1300 / 1310 nm / <0.3 dB/km at 1550 nm
Bend Radius	Operation: 7.5 mm/Installation: 11.25 mm
Fibre Mode	Singlemode
Number of Fibres	12
Outside Diameter	7.5 mm
Sheath Material	LSZH
Sheath Colour	Red
Tensile Strength	2000 N
Temperature	-30 to 70 deg C
