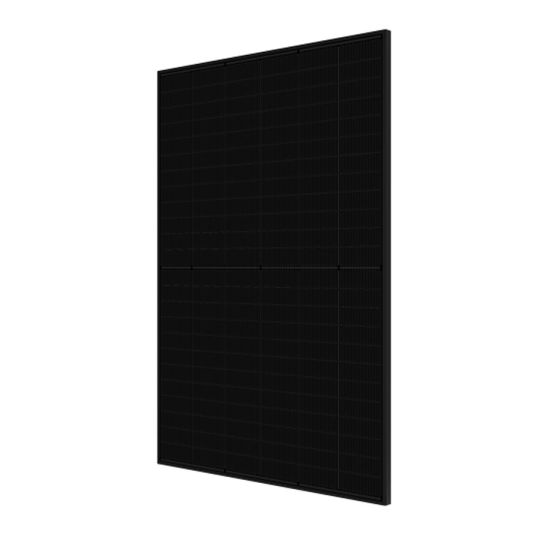

Canadian Solar Solar Module 440W TOPCon 144 Cells 44.4V 9.91A Anodized Aluminum Alloy Dual Glass All Black 52.5V 10.54A

$CanadianSolar\CanadianSolar_CS6.2-48TD_All-Black.JPG$

Description

Solar Module, TOPCon Cell, 144, 440 Watt, 44.4 Volt Maximum, 9.91 Amp Maximum, 52.5 Volt Open Circuit, 10.54 Amp Short Circuit, 20 Amp Max. Fuse, 1500 Volt Max. System, 22% Efficiency, 0-10 Watt Power Tolerance, IP68 Junction Box, Anodized Aluminium Alloy Frame, 2 mm Front Glass, 1762 mm Length

Key Specifications

SKU	CASCS6.2-48TD-440-AB
Brand	Canadian Solar
Range Name	TOPHiKU6

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Module power up to 455 Watt, Module efficiency up to 22.8 % Excellent anti-LeTID and anti-PID performance, low power degradation, high energy yield Lower temperature coefficient (Pmax): -0.29%/deg C, increases energy yield in hot climate Lower LCOE and system cost Tested up to ice ball of 35 mm diameter according to IEC 61215 standard Minimizes micro-crack impacts
Standard Pack Size	36
UNSPSC Class	26111600
UOM	EA
Vendor Product	CS6.2-48TD-440-AB
Cell Type	TOPCon
Certifications	IEC / UL
Efficiency	22%
Frame Construction	Anodized Aluminium Alloy
Front Glass	2 mm
Height	30 mm
Item Weight	24.6 kg
Junction Box	IP68
Max. Fuse Current	20 Amp
Max. System Voltage	1500 Volt
Number Of Cells	144
Operating Temperature	-40 to 85 deg C
Power Tolerance	0-10 Watt
Please Note	Dual Glass, All Black
Temperature Coefficient	-0.29% /deg C
Warranty	15 Years Product/30 Years Power Performance
Wattage	440 Watt
Width	1134 mm
