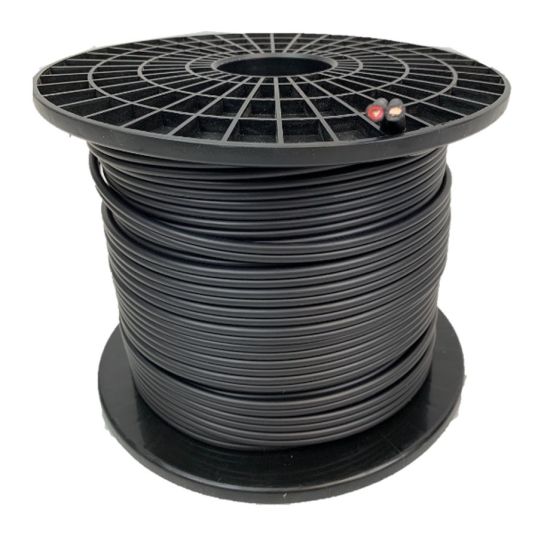

Tonglin Solar Cable Twin DC 2C 4mm 56/0.285mm XLPE XLPE Black 100m 1.5kV 2.46mm 5 x d 0.7mm 0.8mm >=150% 10.3Mpa

$Tonglin\Tonglin_4MMTW-IEC-100_1091.JPG$

Description

Solar Cable Twin DC, 1.5 kV, 4 mm Conductor, 2 Core, 56/0.285 mm Stranding, 2.46 mm Overall Diameter, 100 mtr Length, 5 x d Bend Radius, 0.7 mm Insulation Thickness, 0.8 mm Sheath Thickness, >=150% Elongation, >=10.3 Mpa Tensile Strength, 5.09 Ohm/km Conductor, Tinned Copper Conductor, XLPE Sheath

Key Specifications

SKU	ASE4MMTW-IEC-100
Brand	Tonglin

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	4MMTW-IEC-100
Conductor Material	Tinned Copper
Bend Radius	5 x d
Conductor Resistance	5.09 Ohm/km
Conductor Size	4 mm
Elongation	>=150%
Insulation Colour	Black / Red
Insulation Material	XLPE
Insulation Resistance	580 MOhm/km at 20 deg C/0.58 MOhm/km at 90 deg C
Insulation Thickness	0.7 mm
Number of Cores	2 Core
Overall Diameter	2.46 mm
Sheath Colour	Black
Sheath Material	XLPE
Sheath Thickness	0.8 mm
Standards	IEC 62930
Stranding	56/0.285 mm
Temperature	-40 to 90 deg C
Tensile Strength	>=10.3 Mpa
Voltage	1.5 kV
