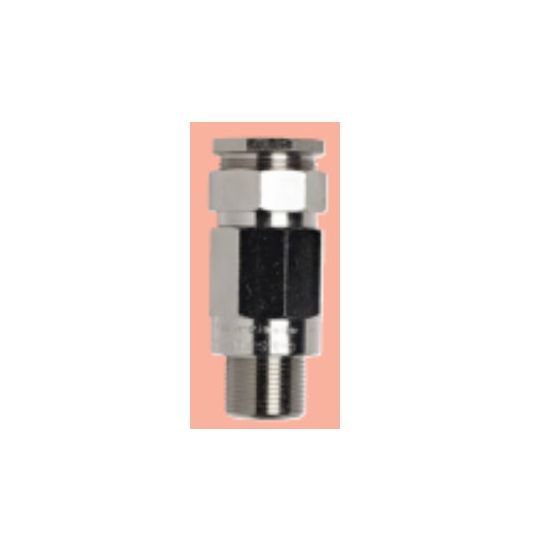

Surefit Hazardous Area Cable Gland Armoured 46.5-51.3mm M50 x 1.5 IP66/68

Description

Hazardous Area Cable Gland, Armoured, M50 x 1.5, 25.4 mm Thread Length, 1.5 mm Pitch, 46.5 mm Min. Sheath OD, 51.3 mm Max. Sheath OD, 40.5 mm Max. Bedding OD, 2 mm Min. Armour Wire, 2.5 mm Max. Armour Wire, Exdb I/IIC, Exeb I/IIC, Ex ta IIIC, 73 mm Width Across Flats, 79.1 mm Width Across Corners, 97 mm Protrusion Length, IP66/68, Neoprene Seal, Brass Body, Nickel Plated Finish, 1/Pack

Key Specifications

Barcode (EAN-13)	9323952340521
SKU	SURFWPM5A
Brand	Surefit
Range Name	Type FWPM
Product Type	Cable Glands Hazardous Area

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For explosion protected, unarmoured cable applications Nickel plated brass cable glands for use with circular armoured cables to secure the cable and armour to provide electrical continuity between the amour and the entry thread of the gland and the enclosure and to provide an explosion protected, weatherproof and dust excluding ignition proof entry into panels or enclosures that meet these requirements Suitable for use in machine and equipment construction, measuring and regulation equipment, construction site installation and many other applications where a robust explosion protected, armoured, weatherproof gland type termination is required
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	FWPM5A
Body Material	Brass
Finish	Nickel Plated
Hazardous Area Rating	Exdb I/IIC Exeb I/IIC Ex ta IIIC
IP Rating	IP66/68
Max. Armour Wire	2.5 mm
Max. Bedding OD	40.5 mm
Min. Armour Wire	2 mm
Max. Sheath OD	51.3 mm
Min. Sheath OD	46.5 mm
Protrusion Length	97 mm
Seal Material	Neoprene
Thread Size	M50 x 1.5
Thread Length	25.4 mm
Thread Pitch	1.5 mm
Width Across Corners	79.1 mm
Width Across Flats	73 mm
