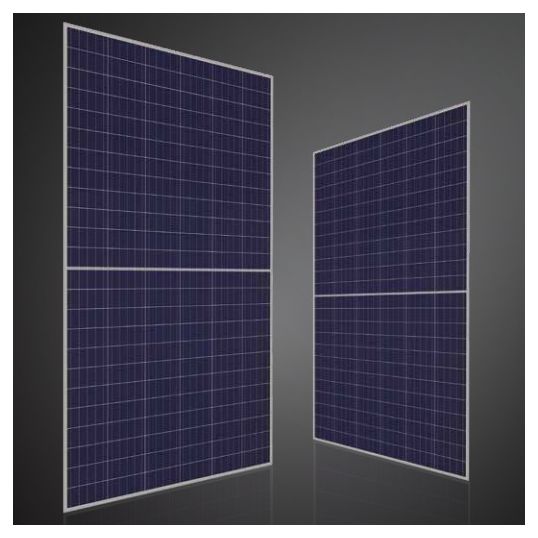

Seraphim Blade Solar Panel 340 Watt Poly-Crystalline 144 Cells

Description

Solar Panel, Polycrystalline, 144 Cells, 340 Watt, 38.8 Volt, 8.77 Amp, 46.5 Volt Open Circuit, 9.24 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC Max. System Voltage, 17.17% Efficiency, 0, +4.99 Watt Power Tolerance, MC4 Compatible Connector, 4 mm, Portrait: 255 mm(+)/355 mm(-); Landscape:1200 mm Output Cables, IP68, 3 Diodes Junction Box, Anodized Aluminium Alloy Frame Construction, 3.2 mm AR Coating Tempered Glass, Low Iron Front Glass, 0.39%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1996 mm x 992 mm x 40 mm, 22.5 kg

Key Specifications

SKU	SERSRP-340-BPA
Brand	Seraphim
Range Name	Blade
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SRP-340-BPA
Cell Type	Polycrystalline
Connector Type	MC4 Compatible
Efficiency	17.17%
Frame Construction	Anodized Aluminium
Front Glass	3.2 mm AR Coating Tempered Glass/Low Iron
Height	40 mm
Item Weight	22.5 kg
Junction Box	IP68/3 Diodes
Max. Current	8.77 Amp
Max. Fuse Current	20 Amp
Max. Voltage	38.8 Volt
Max. System Voltage	1000 Volt DC
Number Of Cells	144
Open Circuit Voltage	46.5 Volt
Operating Temperature	-40 to 85 deg C
Output Cables	4 sq-mm/Portrait: 255 mm(+)/355 mm(-): Landscape:1200 mm
Power Tolerance	0 +4.99 Watt
Short Circuit Current	9.24 Amp
Temperature Coefficient	0.39%/deg C
Wattage	340 Watt
Width	992 mm
