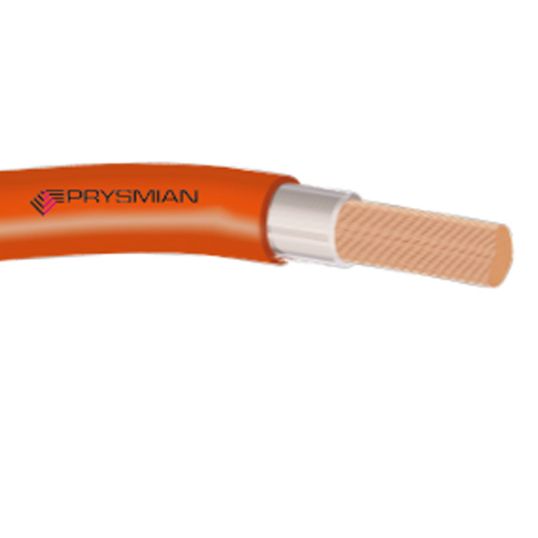

Prysmian Flextreme Flexible Cable 1 Core 185mm 0.6/1kV Copper X-HF-110/Thermoplastic Rubber Natural/Orange
Loading...
Description
Flexible Cable, 185 mm, Annealed Copper, 0.6-1 kV, 1 Core, 18.2 mm Nominal Diameter, 24.8 mm Overall Diameter, 150 mm During Installation/100 mm After Installation Bend Radius, 1.6 mm Insulation Thickness, X-HF-110 Insulation, TPR Sheath, Orange Sheath, -40 to 110 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
9310835224733
|
|---|---|
| SKU |
MMC1851CFFX110OR
|
| Brand |
Prysmian
|
| Product Type |
Flexible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | 20408332 |
| Bend Radius | 150 mm During Installation - 100 mm After Installation |
| Conductor Size | 185 mm |
| Conductor Type | Annealed Copper |
| Insulation Material | X-HF-110 |
| Insulation Thickness | 1.6 mm |
| Nominal Diameter | 18.2 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 24.8 mm |
| Sheath Colour | Orange |
| Sheath Material | TPR |
| Standards | AS/NZS 5000.1 |
| Temperature | -40 to 110 deg C |
| Voltage | 0.6-1 kV |
