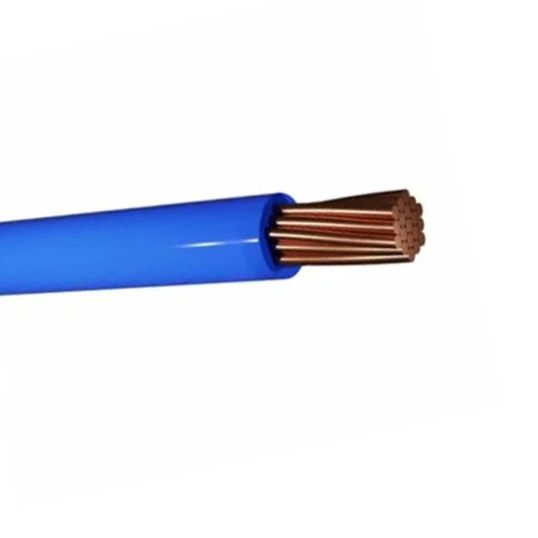

MEC Cables 25mm Building Wire Blue 100mtr

$MEC\MEC_Building_Wire_1C_Blue.JPG$

Description

Building Wire, 25 mm, Class 2 Annealed Copper, 0.6-1 kV, 19 Strands, 8.9 mm Overall Diameter, 100 mtr Length, 178 mm Bend Radius, 1.2 mm Insulation Thickness, DC: 0.727 Ohm/km AC: 0.884 Ohm/km Conductor Resistance, V-90 PVC Insulation, Blue Insulation, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1

Key Specifications

SKU	MCBBV1C0250BL
Brand	MEC Cables
Product Type	Building Wire

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121614
UOM	MTR
Vendor Product	BV1C0250BL
Bend Radius	178 mm
Conductor Resistance	DC: 0.727 Ohm/km AC: 0.884 Ohm/km
Conductor Size	25 mm
Conductor Type	Class 2 Annealed Copper
Insulation Colour	Blue
Insulation Material	V-90 PVC
Insulation Thickness	1.2 mm
Overall Diameter	8.9 mm
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1
Stranding	19
Voltage	0.6-1 kV
