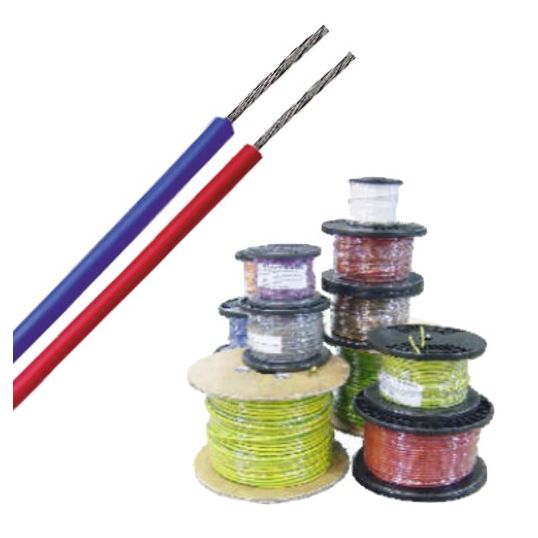

Lapp Kabel High Temperature Flexible Wire Single Insulated 1 Core 0.5mm 0.6/1kV V-90HT PVC +105C Green/Yellow

$Lapp_Kabel\Lapp_Kabel_Flexible_Wire_1_Core.jpg$

Description

Flexible Wire, Single Insulated, High Temperature, 1 Core, 0.5 mm, Stranded Tinned Annealed Copper, 0.6/1 kV, 2.55 mm Overall Diameter, Bend Radius: Static - 7.65 mm, Insulation Resistance: >20 Gohm/cm, V-90HT PVC Insulation, Unsheathed, Green/Yellow Insulation, Flexible - -20 to 105 deg C, CE, RoHS, UL 1015, UL 10269

Key Specifications

Barcode (EAN-13)	4044774293097
SKU	LAP3801000
Brand	Lapp Kabel
Range Name	V90HT SC
Product Type	Flexible Cable High Temperature

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flame retardant The light weight and the pratical hand holes in the spool packaging makes handling easy Higher economy by optimum processing volumes
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	3801000
Bend Radius	Static: 7.65 mm
Conductor Size	0.5 mm
Conductor Type	Stranded Annealed Copper
Insulation Colour	Green/Yellow
Insulation Material	V-90HT PVC
Insulation Resistance	>20 Gohm/cm
Overall Diameter	2.55 mm
Number of Cores	1 Core
Sheath Material	Unsheathed
Standards	CE RoHS UL 1015 UL 10269
Temperature	Flexible: -20 to 105 deg C
Voltage	0.6-1 kV
