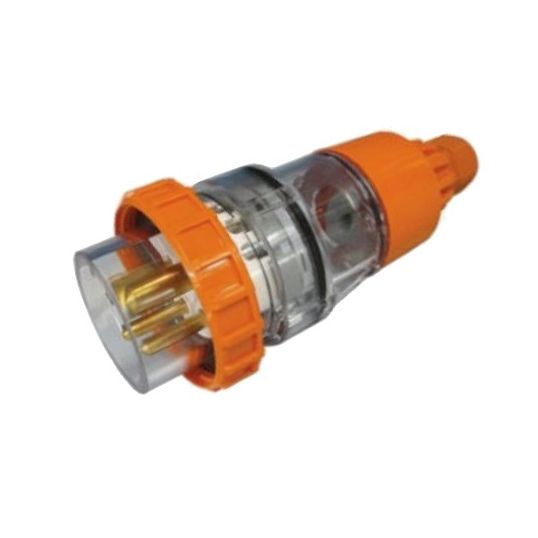

IPD Plug Straight Body Weatherproof 3Ph 20A 500V 4 Pin Round Orange IP66
Loading...
Description
Plug Straight Weatherproof, 500 Volt AC, 20 Amp AC1, Straight Angle, 3 Phase Phase, 4 Pin Round, Screw Connection, 6 sq-mm Cable Entry, M25 Cable Gland Size, 8-17 mm Cable Nominal Diameter, IP66, Polycarbonate, Clear/Orange, 187 mm Depth
Key Specifications
| Barcode (EAN-13) |
9322017196059
|
|---|---|
| SKU |
IPDW66SP420
|
| Brand |
IPD
|
| Range Name |
W66
|
| Product Type |
Plugs Straight
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 36 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | W66SP420 |
| Angle | Straight |
| Cable Entry | 6 sq-mm |
| Cable Gland Size | M25 |
| Cable Nominal Diameter | 8-17 mm |
| Connection Type | Screw |
| Colour | Clear/Orange |
| Depth | 187 mm |
| IP Rating | IP66 |
| Material | Polycarbonate |
| Phase | 3 Phase |
| Pin Configuration | 4 Pin Round |
