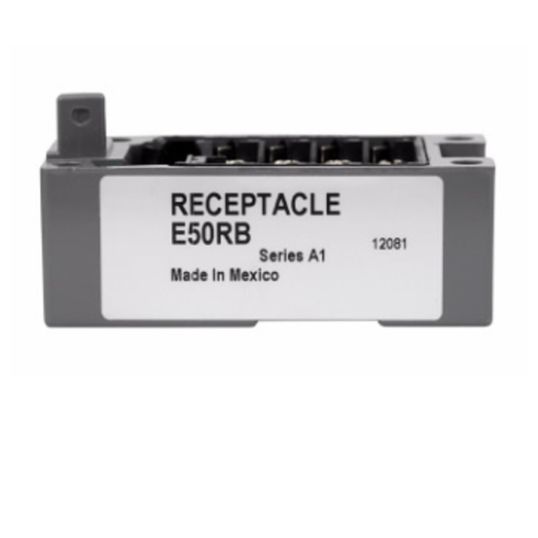

Eaton Cutler Hammer Limit Switch Receptacle Heavy Duty 9 Terminal 1/2 NPT

Description

Limit Switch Receptacle Heavy Duty, Screw Terminal, Surface Mounting, NEMA 1/3/3S/4/4X/6/6P/13, Die Cast Zinc Body, -40 to 250 deg F, 2.92 in Length, 1.06 in Height, 1.54 in Width

Key Specifications

Barcode (EAN-13)	10782113290734
SKU	CUTE50RB
Brand	Eaton Cutler Hammer
Range Name	E50 Series
Product Type	Limit Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Modular, plug-in components (head, body and receptacle) provide application flexibility, reduced inventory and less downtime Chemical-resistant Viton gaskets, seals and boots are standard, and so are captive, posi-drive screws??? The switches have terminal identification on the nameplate for a visual wiring checkout without guesswork. Heads and switch bodies can be replaced without rewiring?? 600 Volt rating, ridge-topped contacts and wiping action ensure continuity even to logic level circuits Keyed, four-direction head positioning Standard 5 deg pre-travel and 90 deg total travel Rotary heads are field convertible CW, CCW, or both, without special tools
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	E50RB
Body Material	Die Cast Zinc
Height	1.06 inch
Mounting Method	Surface
NEMA Rating	NEMA 1/3/3S/4/4X/6/6P/13
Temperature	-40 to 250 deg F
Width	1.54 inch
Terminal Connection	Screw
