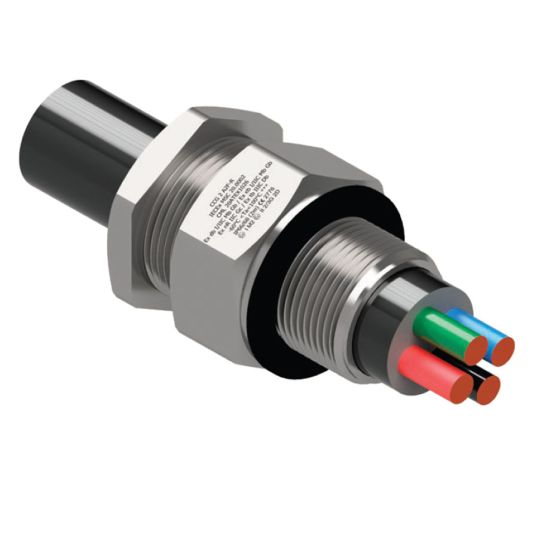

CCG Compression Gland A2F-R Ex db I/IIC Ex eb I/IIC Ex ta IIIC Ex nR IIC Size 0s-20s M20 For Unarmoured Cable 7-12mm

Description

Hazardous Area Unarmoured Compression Gland, M20, 15 mm Thread Length, 1.5 mm, 7 mm Min. Sheath OD, 12 mm Max. Sheath OD, 24 mm Width Across Flats, 27 mm Width Across Corners, For Use With Unarmoured Cables, Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC, Ex nR IIC, 32.5 Nm Torque Rating, IP65/66/68, Aluminium/Brass/Stainless Steel Body, Thermoset Elastomer Seal, HDPE/Nylon 66 Gasket, 25 mm Overall Length, 60 to 95 deg C

Key Specifications

SKU	CCG0590-0
Brand	CCG
Product Type	Compression Glands

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Passes the IECEx/UKEX/ATEX 100% pull test, so no additional cable clamping is required For indoor, outdoor, group I, II, III, zone 1, 2, 20, 21 and 22 hazardous areas Fitted with a specially formulated elastomeric displacement seal, giving superior cable retention, explosion protection and IP rating Precision manufactured from high quality brass (marine grade electroless nickel plated), available in aluminium or stainless steel 316/316L on request. (Note: Aluminium is not suitable for Group I applications.) Supplied with a thread sealing gasket (parallel threads only)
Standard Pack Size	20
UNSPSC Class	39121400
UOM	EA
Vendor Product	0590-0
Body Material	Aluminium/Brass/Stainless Steel
For Use With	Unarmoured Cables
Gasket Material	HDPE/Nylon 66
Hazardous Area Rating	Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC, Ex nR IIC
IP Rating	IP65/66/68
Max. Sheath OD	12 mm
Min. Sheath OD	7 mm
Overall Length	25 mm
Temperature	60 to 95 deg C
Seal Material	Thermoset Elastomer
Thread Length	15 mm
Thread Pitch	1.5 mm
Torque Rating	32.5 Nm
Width Across Flats	24 mm
Thread Size	M20
Width Across Corners	27 mm
