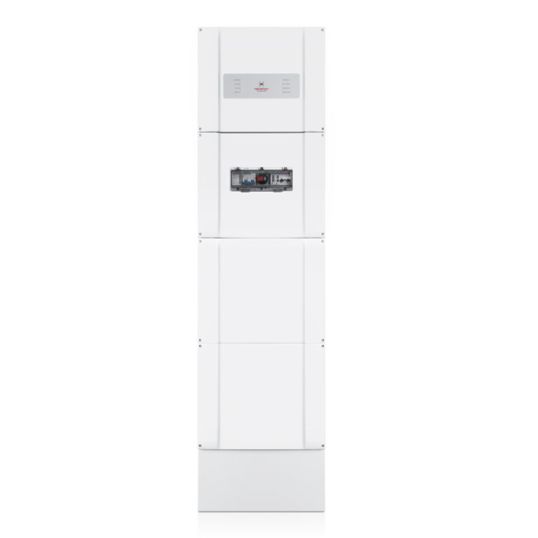

Redback Smart Hybrid System SH5000-222 BE14000 US3000 2 MPPT 5kVA 11A

$Redback\Redback_SH-Bundle.jpg$

Description

Smart Hybrid System, 6.6 kW DC Input, 125-550 Volt DC MPPT Voltage Range, 125 Volt DC Start-up, 11 Amp DC Max. Input, 2 MPPTs, 5 kVA AC Output, 230 Volt AC Nominal, 50 Hz AC Operating, 0.8 Leading - 0.8 Lagging Power Factor, <1.5% Harmonic Distortion, 97.6% Efficiency, 97% European Weighted Efficiency, 99.9% MPPT Efficiency, Transformerless, <4000 mtr Max. Altitude, Lithium-Ion Phospate, Bluetooth, Wi-Fi or Ethernet Communication Port, Coded, Coloured LED Display, Natural Convection Cooling, <25 dB, MC4 Connection, IP65, 4K4H, Battery Cabinet: Steel Chassis; Inverter, BoS & Covers: Aluminum, Sealed and Powder Coated, -25 to 60 deg C, 0-95% Relative Humidity, 1960 mm Height, 518 mm Width, 352 mm Depth, 207 kg (Installed, with 4 x US3000)

Key Specifications

SKU	RDKSH-14KWHBUNDLE
Brand	Redback
Product Type	Hybrid Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Single Phase - Combines 5kVA Solar Inverter for expandable battery storage Backup Supply in a Power Outage (when backup circuit is connected) Streamlined all-in-one design Indoor or outdoor installation Easy monitoring app and portal Australian supported 10 year warranty
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SH-14KWHBUNDLE
AC Operating Frequency	50 Hz
AC Nominal Voltage	230 Volt
AC Output Power	5 kVA
Climate Category	4K4H
Battery	Lithium-Ion Phospate
Communication Port	Bluetooth/Wi-Fi or Ethernet
Cooling Method	Natural Convection
DC Input Power	6.6 kW
Connection Type	MC4
DC MPPT Voltage Range	125-550 Volt
DC Max. Input Current	11 Amp
DC Start-up Voltage	125 Volt
Height	1960 mm
Depth	352 mm
European Weighted Efficiency	97%
IP Rating	IP65
Display Type	Coded Coloured LED
Efficiency	97.60%
Max. Operating Altitude	<4000 mtr
MPPT Efficiency	99.90%
Number of MPPTs	2
Noise Level	<25 dB
Power Factor	0.8 Leading - 0.8 Lagging
Operating Temperature	-25 to 60 deg C
Relative Humidity	0-95%
Topology	Transformerless
Width	518 mm
Total Harmonic Distortion	<1.5%
