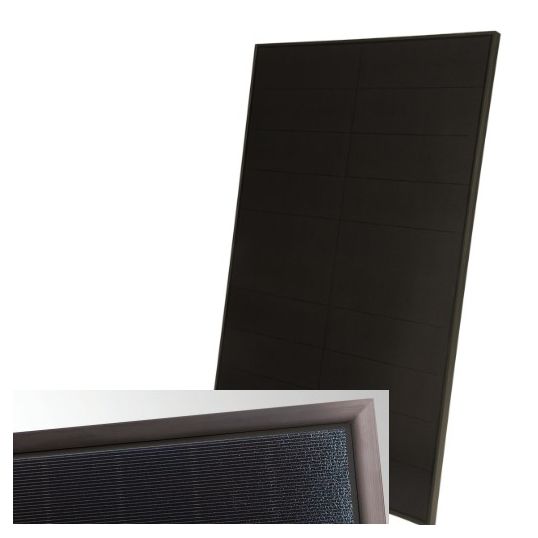

Solaria PowerXT Solar Panel DC 370 Watt Mono-Crystalline Silicon 60 Cells

Description

Solar Panel DC, Monocrystalline Silicon, 60 Cells, 370 Watt, 40.2 Volt, 9.2 Amp, 48.3 Volt Open Circuit, 9.6 Amp Short Circuit Current, 15 Amp Max. Fuse Current, 1000 Volt Max. System Voltage, 20.5% Efficiency, -0/+3 Power Tolerance, Genuine MC4 (Male: PV-KST4, Female: PV-KBT4) Connector, 12 AWG Solar Wire (UL) Output Cables, IP67, 4 Diodes Junction Box, Black Anodised Aluminium Frame Construction, 3.2mm AR Coated, Tempered Front Glass, -0.39%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1621mm Length x 1116mm Width x 40mm Height, 21 kg, IEC61215/61730 (ed. 2016), UL61730/CAN-CSA61730

Key Specifications

SKU	SLAPOWERXT--370R-PD
Brand	Solaria
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Higher efficiency, Higher Power Lower system costs Improved shading tolerance Improved Aesthetics Durability and reliability
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	POWERXT -370R-PD
Cell Type	Monocrystalline
Connector Type	Genuine MC4 (Male: PV-KST4/Female: PV-KBT4)
Efficiency	20.50%
Frame Construction	Anodized Aluminium
Front Glass	3.2 mm AR Coated/Tempered
Certifications	IEC61215/61730 (ed. 2016); UL61730/CAN-CSA61730
Height	40 mm
Item Weight	21 kg
Junction Box	IP67/4 Diodes
Max. System Voltage	1000 Volt
Max. Fuse Current	15 Amp
Max. Current	9.2 Amp
Max. Voltage	40.2 Volt
Open Circuit Voltage	48.3 Volt
Number Of Cells	60
Operating Temperature	-40 to 85 deg C
Output Cables	12 AWG PV Wire (UL)
Power Tolerance	-0/+3%
Short Circuit Current	9.6 Amp
Temperature Coefficient	-0.39%/deg C
Wattage	370 Watt
Width	1116 mm
