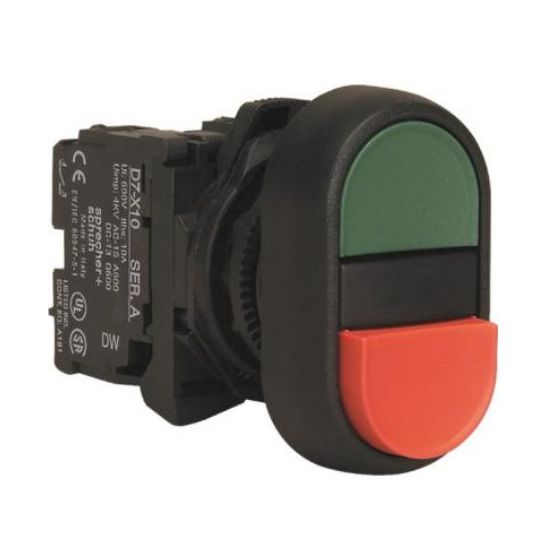

Sprecher+Schuh Double Pushbutton Actuator Only Flush Head Plastic Body k Non Illuminated 1N.O-1N.C 22.5mm Panel Mount

Description

Double Pushbutton Actuator Flush Head, 10 Amp, 1 Normally Opened/1 Normally Closed Configuration, Non-Illuminated Momentary Action Operator Action, BLANK Operator Profile, Flush/Extended Head, Screw Terminal, 0.7 Nm Tightening Torque, Panel Mounting, 22.5 mm Mounting Diameter, IP65/66/69, Thermoplastic Housing, Green/Red, -25 to 70 deg C, 22.5 mm, 49.6 mm Diameter, 16.8 mm Depth, Multi-Function

Key Specifications

Barcode (EAN-13)	9321807233639
SKU	S&SD7P-U2E4F3-PX11
Brand	Sprecher+Schuh
Range Name	D7
Product Type	P/B Actuators Flush

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5 mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel. Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments D7M has a die-cast zinc housing and mounting ring for rugged durability, finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D7PU2E4F3PX11
Contact Configuration	1 Normally Opened/1 Normally Closed
Colour	Green/Red
Current	10 Amp
Depth	16.8 mm
Diameter	49.6 mm
Head Type	Flush/Extended
Housing Material	Thermoplastic
IP Rating	IP65/66/69
Mounting Diameter	22.5 mm
Mounting Method	Panel
Operator Profile	Blank
Please Note	Multi-Function
Operator Action	Non-Illuminated Momentary Action
Temperature	-25 to 70 deg C
Size	22.5 mm
Tightening Torque	0.7 Nm
Terminal Connection	Screw
