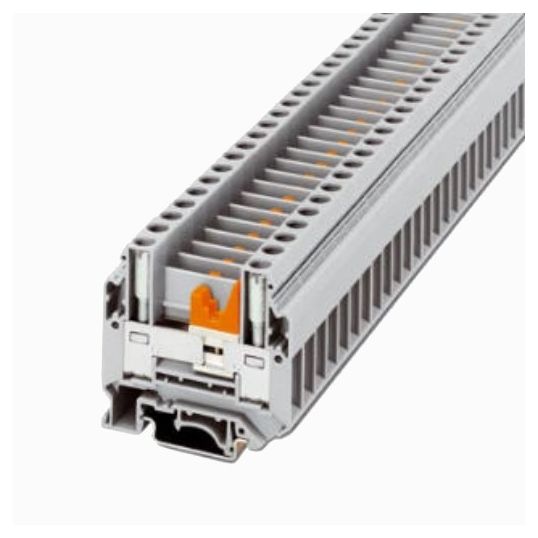

Phoenix Contact Rail Disconnect Terminal Block Screwed 2 Wire 1 Level 0.5-16mm Grey Polyamide

Description

Rail Disconnect Terminal Block, 500 Volt, Rated Surge Voltage: 6 kV, 70 Amp, 0.5-16mm Conductor, 2 Conductors, Wire Strip Length: 8 mm, Tightening Torque: 1.5 to 1.8 N/m, Wiring Format: 2 Conductor Through, 2 Connection Points, 1 Level, Screw Terminal, Insulation Material: Polyamide, Grey, -60 to 105 deg C, Flammability: V0, Height: 58.5 mm NS 35/7,5, 66 mm NS 35/15, 63.5 mm NS 32, 61 mm Width, 10.2 mm Depth

Key Specifications

SKU	PHO0309112
Brand	Phoenix Contact
Product Type	Disconnect Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	0309112
Colour	Grey
Conductor Size	0.5-16mm
Current Rating	70 Amp
Flammability	V0
Depth	10.2 mm
Height	58.5 mm NS 35/75; 66 mm NS 35/15; 63.5 mm NS 32
Insulation Material	Polyamide
Number of Levels	1
Number of Conductors	2
Mounting Method	NS 32 - NS 35/75 - NS 35/15
Number of Connection Points	2
Rated Surge Voltage	6 kV
Terminal Type	Screw
Tightening Torque	1.5-1.8 Nm
Voltage Rating	500 Volt
Width	61 mm
Wire Strip Length	8 mm
Wiring Format	2 Conductor Through
