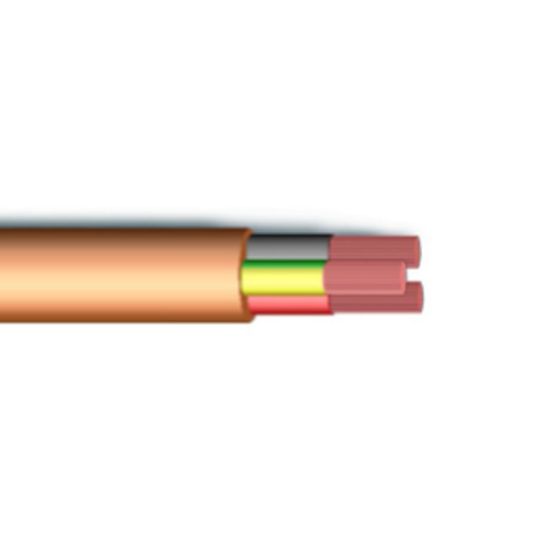

MEC Cables 16mm 2 Core + Earth Orange Flexible Cable

Description

Flexible Cable, 16 mm, Class 5 Annealed Copper, 0.6-1 kV, 2 Core + Earth, 18.3 mm Overall Diameter, 0.3 mm Earth Conductor, 60 mm Bend Radius, 0.7 mm Insulation Thickness, 0.7 mm + 0.7 mm Earth Sheath Thickness, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, AS/NZS 1125 AS/NZS 3808 AS/NZS 3013 AS/NZS 1660.5.6 AS/NZS 5000.1

Key Specifications

SKU	MCBXP2C0160E
Brand	MEC Cables
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	XP2C0160E
Bend Radius	60 mm
Conductor Size	16 mm
Conductor Type	Class 5 Annealed Copper
Earth Conductor Size	0.3 mm
Insulation Material	X-90 XLPE
Insulation Thickness	0.7 mm
Number of Cores	2 Core + Earth
Overall Diameter	18.3 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Sheath Thickness	0.7 mm + 0.7 mm Earth
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 3013 AS/NZS 1660.5.6 AS/NZS 5000.1
Voltage	0.6-1 kV
