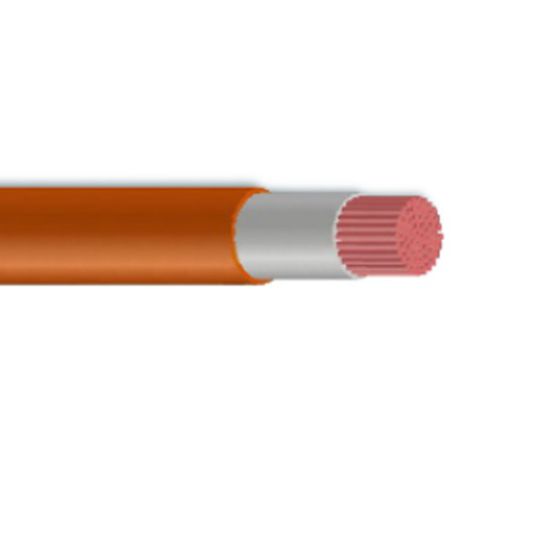

MEC Cables Flexible Power Cable 95mm Copper Conductor 0.6/1kV 1 Core XLPE/PVC

Description

Flexible Cable, 95 mm, Annealed Copper, 0.6-1 kV, 1 Core, 0.3 mm Nominal Diameter, 18.5 mm Overall Diameter, 111 mm Bend Radius, 1.1 mm Insulation Thickness, 1.5 mm Sheath Thickness, 0.206 Ohm/km Conductor Resistance, 0.206 Ohm/km Insulation Resistance, X-90 XLPE Insulation, Natural Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1660.5.6 IEC 60332-1

Key Specifications

SKU	MCBXP1C0950
Brand	MEC Cables
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121500
UOM	MTR
Vendor Product	XP1C0950
Bend Radius	111 mm
Conductor Resistance	0.206 Ohm/km
Conductor Size	95 mm
Conductor Type	Annealed Copper
Insulation Colour	Natural
Insulation Material	X-90 XLPE
Insulation Resistance	0.206 Ohm/km
Insulation Thickness	1.1 mm
Nominal Diameter	0.3 mm
Number of Cores	1 Core
Overall Diameter	18.5 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Sheath Thickness	1.5 mm
Standards	AS/NZS 1660.5.6 IEC 60332-1
Temperature	90 deg C
Voltage	0.6-1 kV
