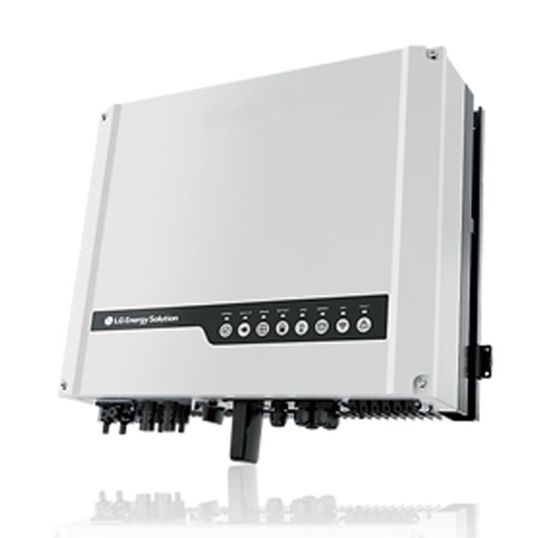

LG Energy Solutions Resu Hybrid Inverter 1 Phase 5000Watt For RESU6.5 10 & 12 Only

Description

Hybrid Inverter, 1 Phase, 6500 Watt DC Input, 580 Volt DC Input, 360 Volt DC Nominal, 120-550 Volt DC MPPT Voltage Range, 125 Volt DC Start-up, 11 Amp DC Max. Input, 5000 Watt AC Output, 4600 VA AC Max. Apparent, 230 Volt, 60 Hz, 20 Amp AC Output, Adjustable from 0.8 Leading to 0.8 Lagging Power Factor, <3% Total Harmonic Distortion, 97.6% Efficiency, 97.0% European Weighted Efficiency, 99.9% MPPT Efficiency, Non-Isolated, <=4000 mtr Max. Altitude, CAN, RS485, Wi-Fi, Natural Convection Cooling, <25 Db, Wall Bracket Mounting, IP65,-25 to 60 deg C, 0 to 95% Relative Humidity, 440mm Height, 516mm Width, 184mm Depth, 30 kg

Key Specifications

SKU	LGHLGES-5048
Brand	LG Energy Solutions
Range Name	Resu
Product Type	Hybrid Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed to fit with perfectly with RESU 6.5, RESU 10, RESU 10 UPS Backup Reliable 10 Years Warranty Provided by LG Energy Solution PV Oversizing to 8.5kW With Battery Single Point of Technical Support through LG Energy Solution Service
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	LGES-5048
AC Max. Apparent Power	4600 VA
AC Nominal Voltage	230 Volt
AC Operating Frequency	60 Hz
AC Output Current	20 Amp
AC Output Power	5000 Watt
Communication Port	CAN/RS485/Wi-Fi
Cooling Method	Natural Convection
DC Input Power	6500 Watt
DC Input Voltage	580 Volt
DC Max. Input Current	11 Amp
DC MPPT Voltage Range	120-550 Volt
DC Nominal Voltage	360 Volt
DC Start-up Voltage	125 Volt
Depth	184 mm
Efficiency	97.60%
European Weighted Efficiency	97.00%
IP Rating	IP65
Height	440 mm
Max. Operating Altitude	<=4000 mtr
Mounting Method	Wall
MPPT Efficiency	99.90%
Noise Level	<25 Db
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Power Factor	Adjustable from 0.8 Leading to 0.8 Lagging
Relative Humidity	0 to 95%
Topology	Non-Isolated
Total Harmonic Distortion	<3%
Width	516 mm
