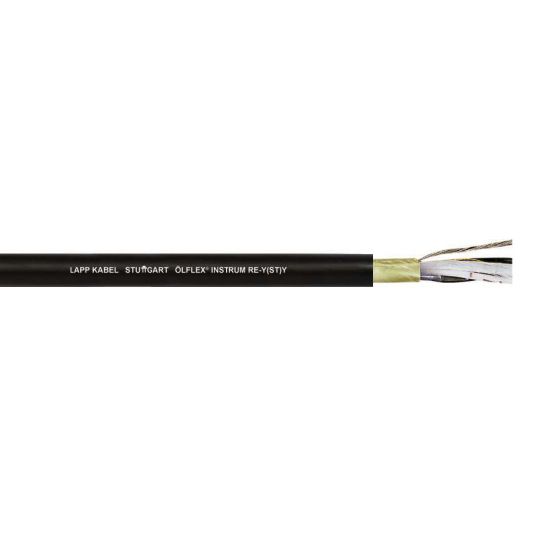

Lapp Kabel Olflex Instrumentation Cable Unarmoured 8 Pair Overall Screened 1.5mm 0.5kV PVC/AL/PVC Black

Description

Instrumentation Cable, Unarmoured, 8 Pair, Overall Screened, 1.5 mm, Plain Annealed Copper, 0.5 kV, 19.6 mm Overall Diameter, 117.6 mm Bend Radius, Insulation Resistanc: >10 MOhm/km, Aluminium/Polyester Tape Screen, V-90HT PVC Insulation, 5V-90 PVC Sheath, Black White & Numbered Cores, Black Sheath, -30 to 105 deg C, EN 50288-7, IEC 60332-3-24

Key Specifications

SKU	LAP1270958
Brand	Lapp Kabel
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1270958
Bend Radius	117.6 mm
Conductor Size	1.5 mm
Conductor Type	Annealed Copper
Core Colours	Black/White Numerals
Insulation Material	V-90HT PVC
Insulation Resistance	>10 MOhm/km
Number of Pairs	8 Pair
Overall Diameter	19.6 mm
Screen Format	Overall Screened
Screen Material	Aluminium/Polyester Tape
Sheath Colour	Black
Sheath Material	5V-90 PVC
Standards	EN 50288-7 IEC 60332-3-24
Temperature	-30 to 105 deg C
Voltage	0.5 kV
