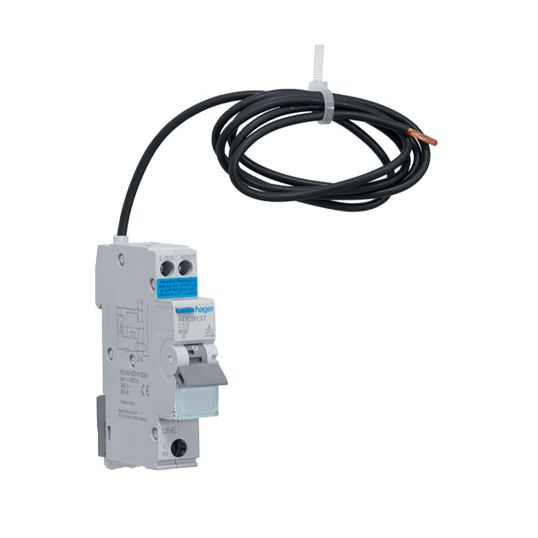

Hager RCBO 1Pole 13 Amp 230/240V AC 6 kA 1Module DIN Rail
Loading...
Description
Residual Current Circuit Breaker, 230-240 Volt, 13 Amp-30 mA, 50 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 1 + N Pole, 1 Module, Screw Connection, IP20, Flush Mounting, 25 to 70 deg C, 85 mm Height, 17.7 mm Width, 70 mm Depth
Key Specifications
| Barcode (EAN-13) |
3250611033349
|
|---|---|
| SKU |
HAGADC913T
|
| Brand |
Hager
|
| Product Type |
Residual Current Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | ADC913T |
| Connection Type | Screw |
| Height | 85 mm |
| Depth | 70 mm |
| Modules | 1 Module |
| Frequency | 50 Hz |
| Interrupt Capacity | 6 kA |
| Mounting Method | Flush |
| IP Rating | IP20 |
| Number Of Poles | 1 Pole |
| Temperature | 25 to 70 deg C |
| Trip Characteristic | C Curve |
| Trip Sensitivity | 30 mA |
| Voltage | 230-240 Volt |
| Width | 17.7 mm |
