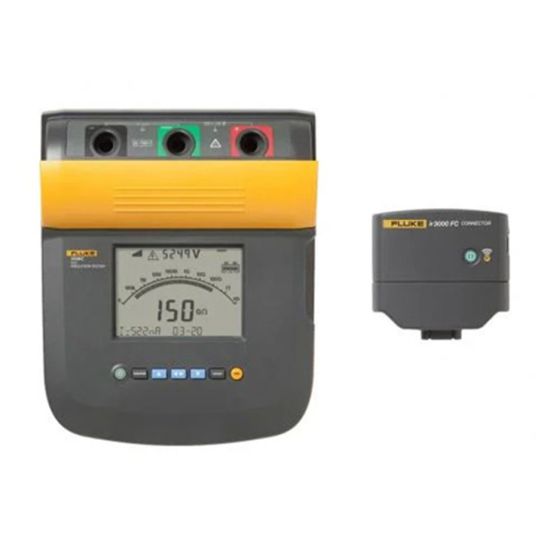

Fluke Insulation Tester Kit 5kV

Description

Insulation Tester Kit, 5 kV, 2 TOhm, Range: 0.01 uF to 15.00 uF, Accuracy: +/-(15% rdg + 0.03 uF), 12 Volt Lead-Acid Rechargeable Battery, Yuasa NP2.8-12, -20 to 50 deg C, Digital/Analog LCD Display, 269mm x 277mm x 160mm

Key Specifications

Barcode (EAN-13)	095969868785
SKU	FLU1550CFC
Brand	Fluke

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup Guard system eliminates the effect of surface leakage current on high-resistance measurements Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V CAT III 1000 V, CAT IV 600 V safety rating Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall Long battery life gives the user over 750 tests between charges Large digital/analog LCD for easy viewing Capacitance and leakage current measurement Ramp function for breakdown testing
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	FLU1550CFC
Dimensions	269 mm x 277 mm x 160 mm
Display Type	Digital/Analog LCD
Product Type	simple
Power Supply	12 Volt Lead-Acid Rechargeable/Yuasa NP2.8-12
Resistance	2 TOhm
Voltage	5 kV
Temperature	-20 to 50 deg C
