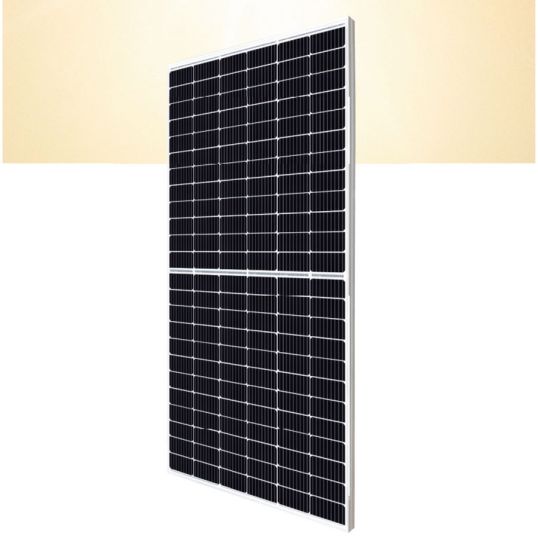

Canadian Solar HiKu Solar Panel 450 Watt Mono-Crystalline Super High Power PERC 144 Cells Silver Frame 12 Years

Description

Solar Panel, CS3W Model, Monocrystalline Cell, 144 Cell, 450 Watt, 41.1 Volt Max. Voltage, 10.96 Amp Max. Current, 49.1 Volt Open Circuit Voltage, 11.6 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000/1500 Volt Max. System Voltage, 20.4% Efficiency, 0-5 Watt Power Tolerance, T4-PC-1/PV-KST4/XY-UR, PV-KBT4-EVO2/XY/UTXCFA4AM/UTXCMA4AM Connector, 4 mm (IEC)/12 AWG (UL) Output Cables, Junction Box: IP68/3 w/Bypass Diodes, Silver Anodized Aluminium Frame, 3.2 mm Tempered Glass, -0.35%/deg C Temperature Coefficient, -40 to 85 deg C, 2108 mm Length, 1048 mm Width, 40 mm Height, 24.9 kg, IEC 61215/61730, VDE, CE Marked, UL 1703, CSA, 12 Years

Key Specifications

SKU	CASCS3W-450MS
Brand	Canadian Solar
Range Name	HiKu
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	CS3W-450MS
Cell Type	Monocrystalline
Connector Type	T4-PC-1/PV-KST4/XY-UR PV-KBT4-EVO2/XY/UTXCFA4AM/UTXCMA4AM
Efficiency	20.40%
Frame Construction	Silver Anodized Aluminium
Front Glass	3.2 mm Tempered Glass
Certifications	IEC 61215/61730 VDE CE Marked UL 1703 CSA
Height	40 mm
Item Weight	24.9 kg
Junction Box	IP68/3 w/Bypass Diodes
Max. System Voltage	1000/1500 Volt
Max. Fuse Current	20 Amp
Max. Current	10.96 Amp
Model	CS3W
Max. Voltage	41.1 Volt
Open Circuit Voltage	49.1 Volt
Number Of Cells	144
Operating Temperature	-40 to 85 deg C
Output Cables	4 mm (IEC)/12 AWG (UL)
Power Tolerance	0-5 Watt
Short Circuit Current	11.6 Amp
Temperature Coefficient	-0.35%/deg C
Wattage	450 Watt
Warranty	12 Years
Width	1048 mm
