Meters Voltage Source Proving Unit 230/415V

chevron-left
loader
Loading...

Description

chevron-down

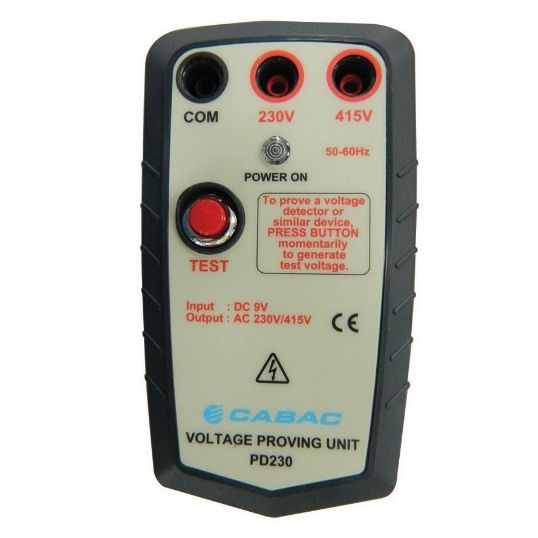

Voltage Source Proving Unit, 230/415 Volt AC, 9 Volt Alkaline 6F22 Battery, 128mm Length x 72mm Width x 45mm Thickness

Key Specifications

chevron-down
Barcode (EAN-13)
9318674024989
SKU
CAAPD230
Brand
Meters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Voltage source D mm proving unit for 230V and 415V AC output powered by 9V battery (6F22)
  • Visual indicator when source in ON
  • Push test button with protection guard
  • Includes magnets to mount and metal panels
  • Suitable for field proving high impedance voltage testers
Standard Pack Size 1
UNSPSC Class 41113600
UOM EA
Vendor Product PD230
Dimensions 128 mm Length x 72 mm Width x 45 mm Thickness
Product Type simple
Power Supply 9 Volt Alkaline 6F22
Voltage 230-415 Volt AC
