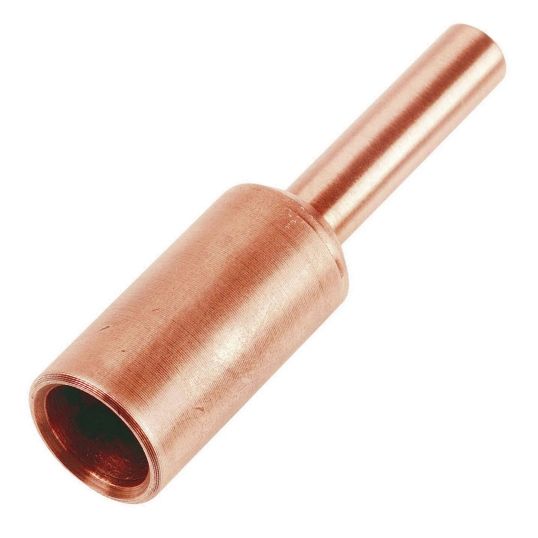

Cabac Crimp Lug Stalk Type B Copper 35mm M6 Stud 30mm L Stalk 62mm OAL

Description

The CABAC copper stalk range are crimped with standard hexagon dies for the equivalent copper lug. The tooling is dimensionally compatible with standard Australian tooling.

Key Specifications

Barcode (EAN-13)	9318674517160
SKU	CAACS35/6
Brand	Cabac
Range Name	Stalk Lugs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Stalk lugs are generally used to attach cable terminations to a copper overhead conductor Suitable for electrical equipment with clamp terminals Crimped with CABAC and MSS Power standard tooling and copper dies
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	CS35/6
A-F Hex Die	9.2 mm
Barrel Length	21 mm
Body Material	Annealed Copper
Conductivity	99.7% IACS
Conductive Material	Annealed Copper
Conductor Size	35 mm
Crimping Die	HT130-C-35
Ductile Rating	40%
Inside Diameter	8.5 mm
Number of Crimps	1
Overall Length	62 mm
Resistivity	1.738 micro-Ohm/cm
Stalk Diameter	M6
Stalk Length	30 mm
Temperature	-55 to 155 deg C
Tensile Strength	200 MPa
