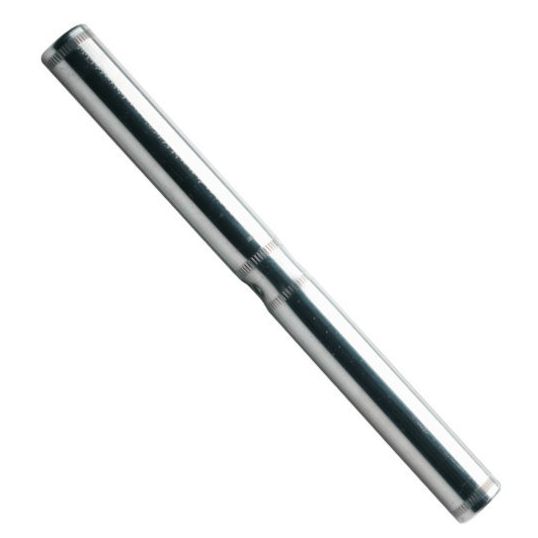

Cabac Full Tension Sleeve A Style 37/3.75 409mm Triton Phosphorus

Description

Full Tension Sleeve, A Style, 409 mm, Number of Strands: 37/3.75 AAC/AAAC, AAC Conductor Name: Triton, AAAC Conductor Name: Phosphorus, Aluminium, 25.5mm Inside Diameter, 26.25mm Conductor Outside Diameter, 580 mm Length, A/F Hex Die: 43.2 mm, Crimping Die: ECW-H3D37/375, 15 Overlap Crimps

Key Specifications

Barcode (EAN-13)	9318674553038
SKU	CAAAFT114A
Brand	Cabac
Product Type	Tension Sleeves

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Full tension 'A' Style sleeve designed for use with AAC or AAAC conductors under full tension loading Featuring a centre cable location dimple Filled with jointing compound Crimp using hex or indent dies
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	AFT114A
AAAC Conductor Name	Phosphorus
AAC Conductor Name	Triton
Conductor Outside Diameter	26.25mm
Conductor Size	409 mm
Crimping Die	ECW-H3D37/375
Inside Diameter	25.5mm
Number of Crimps	15 Overlap
Number of Strands	37/3.75 AAC/AAAC
