ASI Lamps Type 16 Miniature Lamp 36V 30mA BA5s 0.3 MSCP 3000 hrs CC2F Filament 5x16mm
Loading...
Description

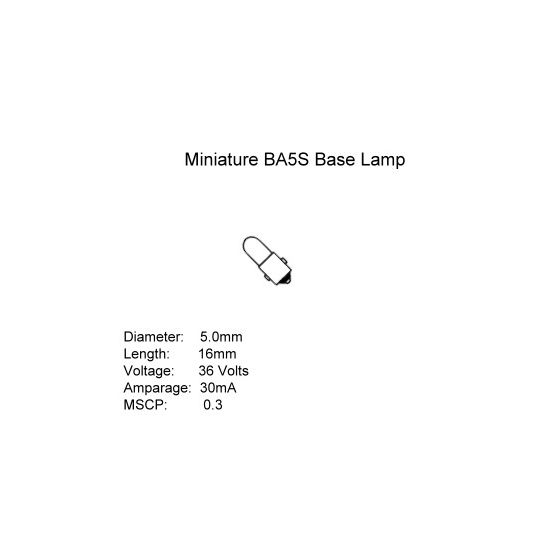

Indicator Lamp, Miniature, 36 Volt, 30 mA, BA5s Base, 0.3 MSCP, 3000 hrs Average Life, CC2F Filament, 5 mm Overall Diameter, 16 mm Overall Length
Key Specifications
| SKU |
ASS16-036/30
|
|---|---|
| Brand |
ASI Lamps
|
| Range Name |
Type 16
|
| Product Type |
Indicator Lamps Mini
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | 016-036/030 |
| Average Lamp Life | 3000 hrs |
| Base Type | BA5s |
| Current | 30 mA |
| Diameter | 5 mm |
| Filament | CC2F |
| MSCP | 0.3 MSCP |
| Voltage | 36 Volt |
