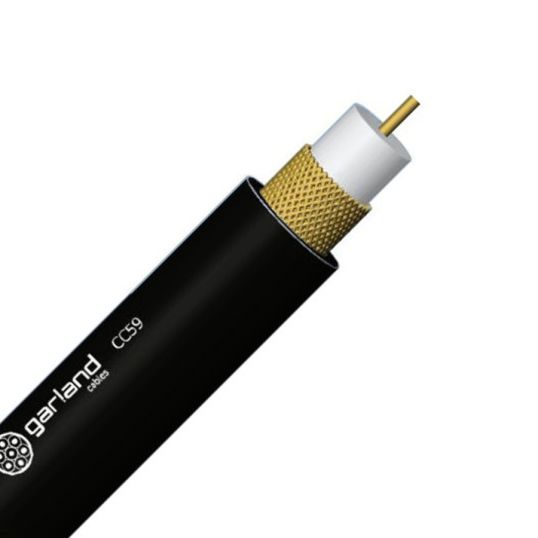

Garland Pro Series RG59B/U Coaxial Cable 75Ohm 0.29mm 1/0.6mm PE/PVC Black
Loading...
Description
RG59B/U Coaxial Cable, 0.29 mm, PACW, 0.6 mm Conductor Diameter, Bend Radius: Install: 62 mm, Elongation: Before Aging Insulation: >300%, Before Aging Sheath: >100%, Pulling Tension: 107 N, Tensile Strength: Before Aging >12 MPa, Stranding: 1/0.6 mm, Insulation Thickness: 1.5 mm, Sheath Thickness: 0.9 mm, Conductor Resistance: DC: 62 Ohm/km at 20 deg C, Insulation Resistance: 1000 MOhm.km, Capacitance: Conductor to Shield: 67 +/-2 pF/mtr, 75 +/-3 Ohm Impedance, PACW 84% Coverage Braid, Solid Polyethylene Insulation, PVC Sheath, Black (RAL 9004) Sheath, 6.2 mm Overall Diameter,-15 to 70 deg C, 23 AWG
Key Specifications
| Barcode (EAN-13) |
9329849000202
|
|---|---|
| SKU |
GARCC59100
|
| Brand |
Garland
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 52161600 |
| UOM | MTR |
| Vendor Product | CC59100 |
| Please Note | 23 AWG |
| Temperature | 15 to 70 deg C |
| Product Type | simple |
