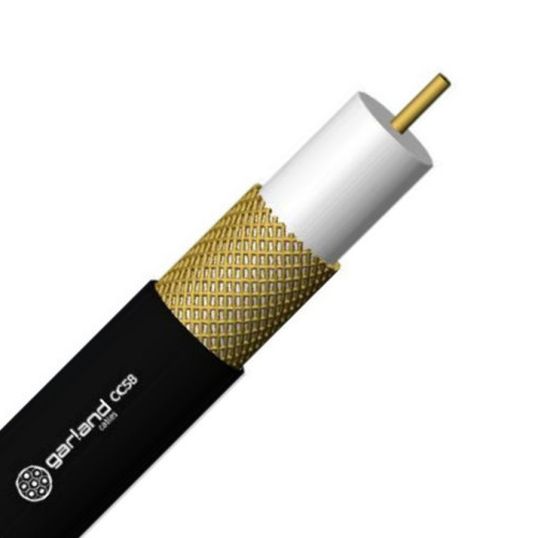

Garland Pro Series RG58/U Coaxial Cable 50Ohm 0.54mm 19/0.19mm PE/PVC Black 100M
Loading...
Description
RG58/U Coaxial Cable, 0.54 mm, TACW, 0.96 mm Conductor Diameter, Bend Radius: Install: 50 mm, Tensile Strength: Before Aging >12 MPa, Stranding: 19/0.19 mm, Insulation Thickness: 0.95 mm, Sheath Thickness: 0.7 mm, Conductor Resistance: DC: 35.1 Ohm/km at 20 deg C, Insulation Resistance: 1000 MOhm.km, Capacitance: Conductor to Shield: 101 +/-2 pF/mtr, 50 +/-3 Ohm Impedance, TACW 93% Coverage Braid, Solid Polyethylene Insulation, UV Stabilized PVC Sheath, Black (RAL 9004 Signal Black) Sheath, 4.95 mm Overall Diameter, 100 mtr Length,-15 to 70 deg C, Low Loss 20 AWG
Key Specifications
| Barcode (EAN-13) |
9329849000172
|
|---|---|
| SKU |
GARCC58100
|
| Brand |
Garland
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 52161600 |
| UOM | MTR |
| Vendor Product | CC58100 |
| Please Note | Low Loss 20 AWG |
| Temperature | 15 to 70 deg C |
| Product Type | simple |
