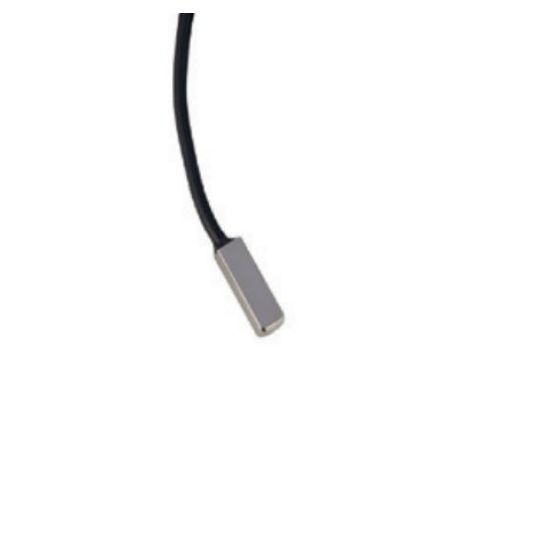

Clipsal C-Bus Digital Temperature Sensor Flat Tip 20x4.5x7mm 2m Cable

Description

Digital Temperature Sensor, Sensing Range:-40 to 100 deg C, 18 mA, Number of Conductors: 2, Dimensions: 20mm Length x 4.5mm Width x 7mm Height, Temperature: 0 to 65 deg C, 2 mtr Cable Length

Key Specifications

SKU	CLI5100DTSF
Brand	Clipsal
Range Name	C-Bus
Product Type	Sensors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Temperature sensor cable is 2-conductor, insulated and 2m in length Temperature sensors are powered by the Input Unit Maximum extension length is 25m per temperature sensor Temperature sensor tip material - 314 grade stainless steel Input unit contains LED indicators for temperature sensor connection status Input unit detects reverse connection, short or open circuit and failure of connected temperature sensors Configurable frequency of temperature broadcast on C-Bus Temperature offset feature within programming Operates on C-Bus measurement or C-Bus HVAC applications Unit draws 18mA from a C-Bus network
Standard Pack Size	1
UNSPSC Class	39121800
UOM	EA
Vendor Product	5100DTSF
Current	18 mA
Dimensions	20mm Length x 4.5mm Width x 7mm Height
Please Note	2 mtr Cable Length
Temperature	0 to 65 deg C
