Alco Cable Gland Earth Tag Slip On M16 Nickel Plated Brass

chevron-left
loader
Loading...

Description

chevron-down

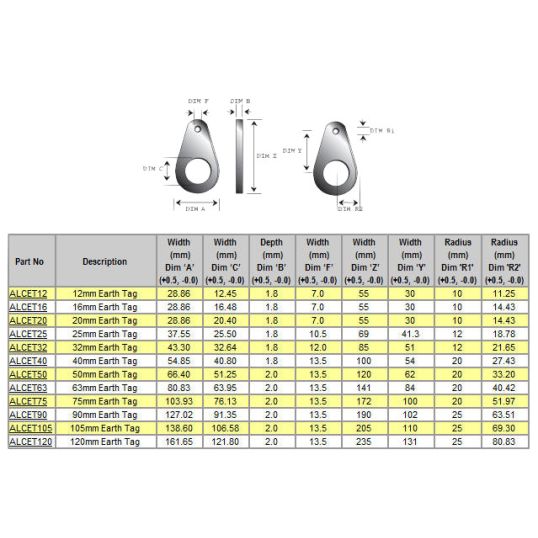

Cable Gland Earth Tag Slip On, M16, 7 mm Earth Bolt Diameter, 16.48 mm Mounting Hole Diameter, Brass Body, Nickel Plated, 55 mm Length, 28.86 mm Width, 1.8 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
9314520033556
SKU
ALCET16
Brand
Alco
Product Type
Earth Tags

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Functions as a means of connection around the cable gland
  • Guarantees earth continuity between the electrical apparatus and the cable gland
  • Made from nickel plated brass
  • Bolt connection varies from 7-13.5mm hole size
  • ET82 supplied with 20 deg bend at neck
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product ALCET16
Depth 1.8 mm
Body Material Brass
Earth Bolt Diameter 7 mm
Finish Nickel Plated
Mounting Hole Diameter 16.48 mm
Thread Size M16
Width 28.86 mm
