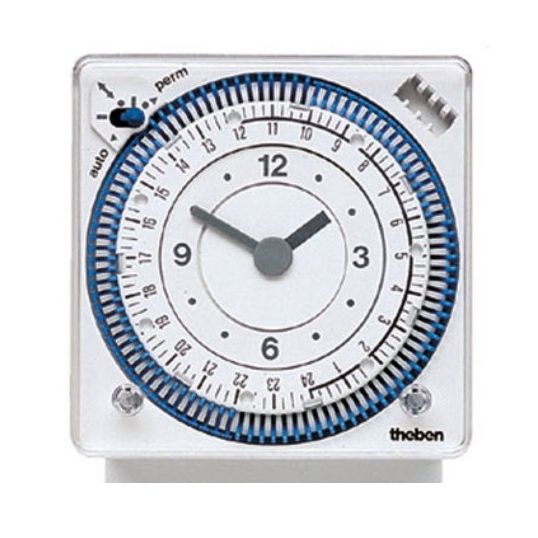

Theben Time Switch Analogue 24 Hour Reserve 1 Channel 230VAC 10A CO DIN Rail Mount

chevron-left
loader
Loading...

Description

chevron-down
Time Switch Analogue 24 Hour Reserve, 230 VAC, 10 Amp Switching Capacity, 50-60 Hz, 1 Channels, Screw, CO, IP20, DIN Rail,-10 to 55 deg C, 104mm Height x 69mm Width x 72mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
4003468180631
SKU
THBSUL189S
Brand
Theben
Product Type
Time Switches Analogue

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 1 channel
  • Daily program
  • With power reserve (NiMH rechargeable battery)
  • 96 switching segments
  • Quartz controlled
  • Shortest switching time: 15 min
  • Clock hands for time display
  • Switching pre-selection
  • Permanent ON/OFF switch
  • Switching status display
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product 1890801
Connection Type Screw
Contact Type Changeover
Dimensions 104mm Height x 69mm Width x 72mm Depth
Frequency 50-60 Hz
IP Rating IP20
Mounting Method DIN Rail
Number of Channels 1 Channel
Temperature -10 to 55 deg C
Switching Capacity 10 Amp
Voltage 230 Volt
